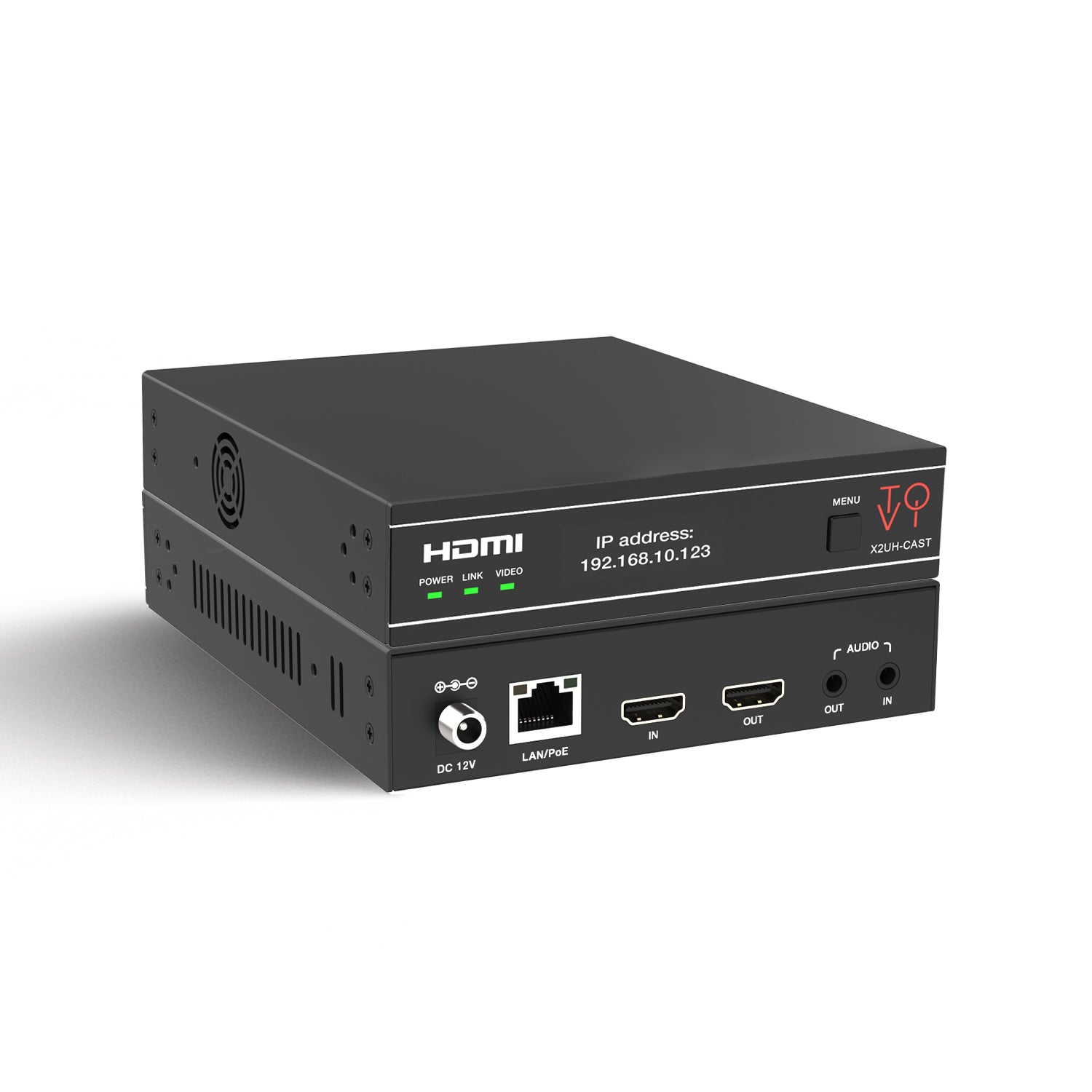

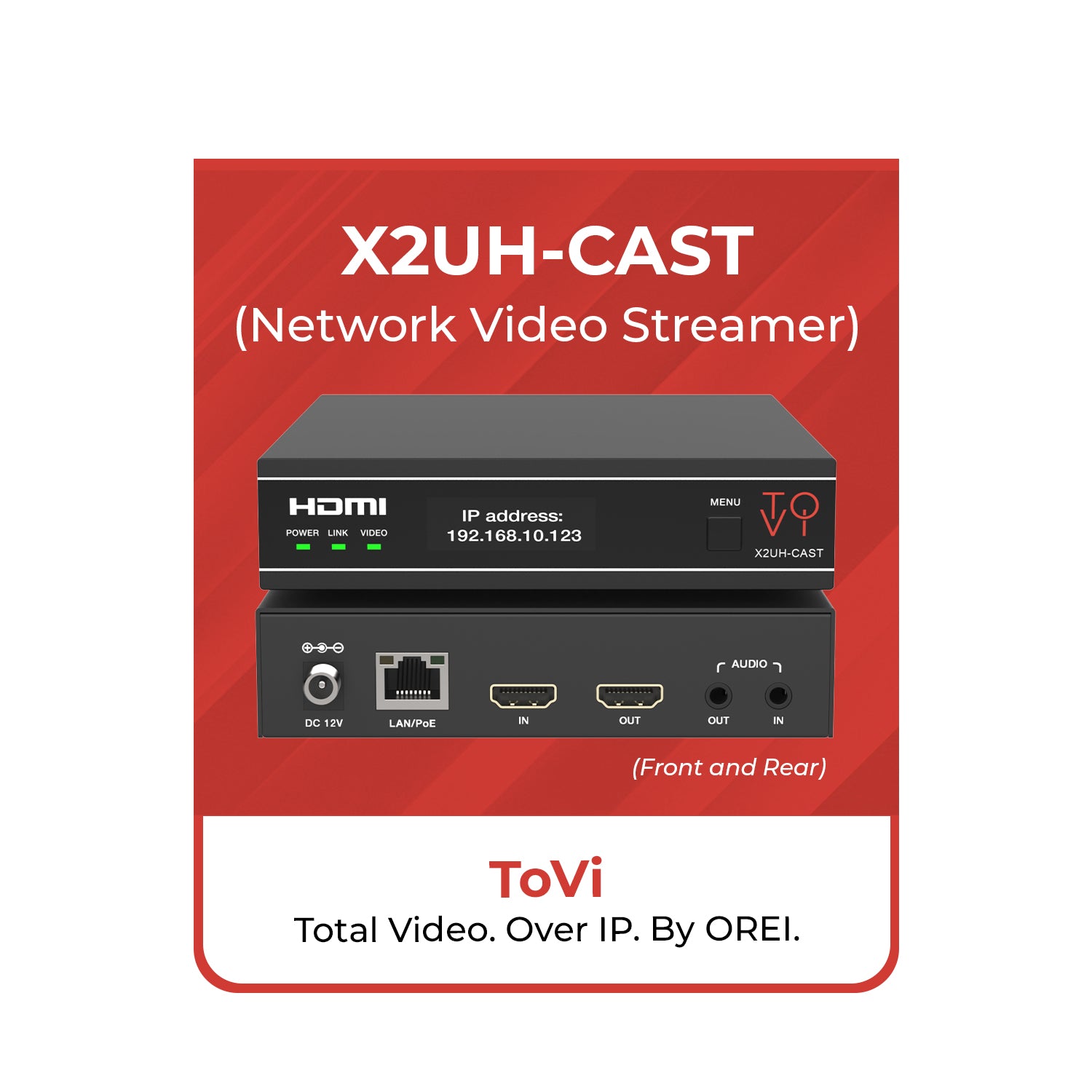

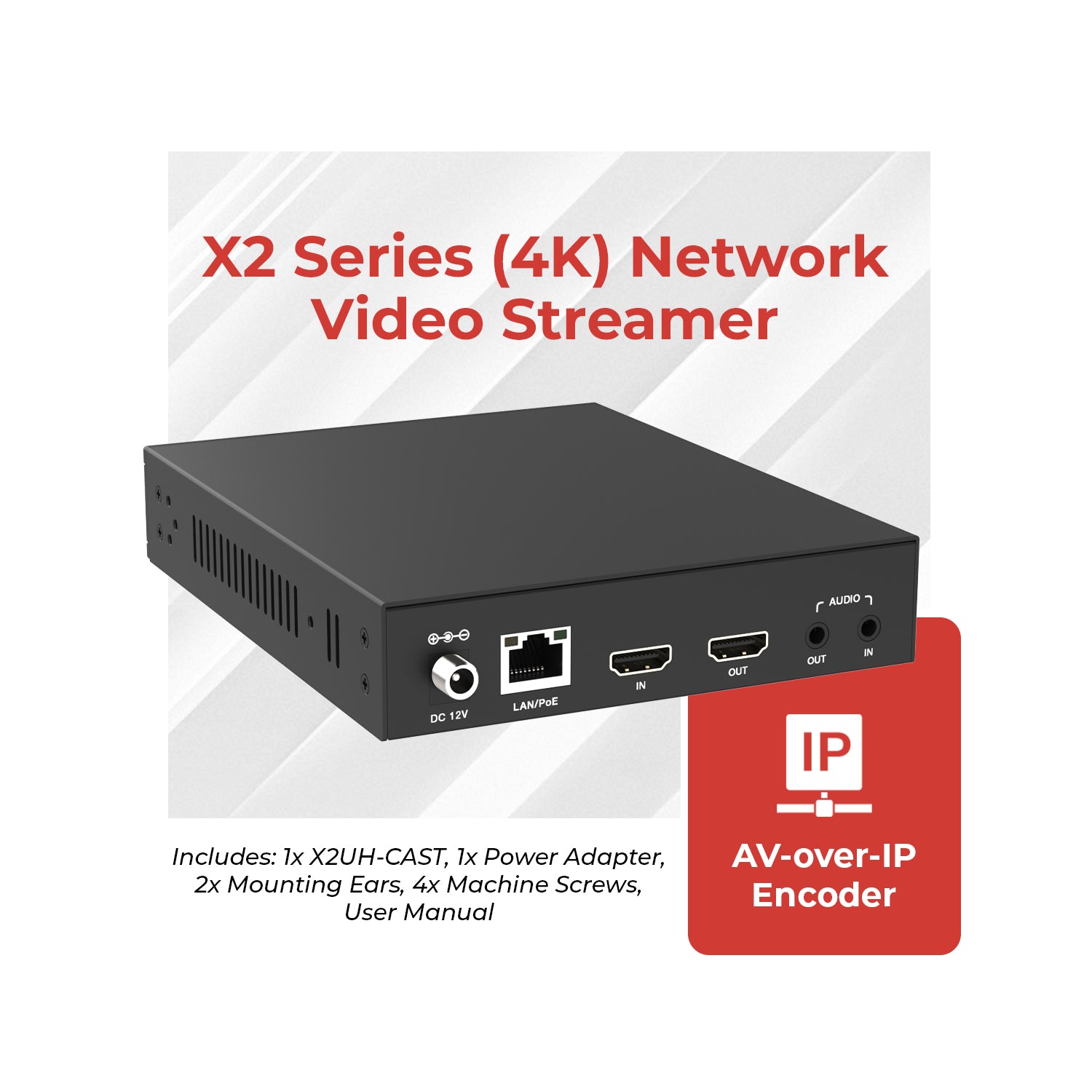

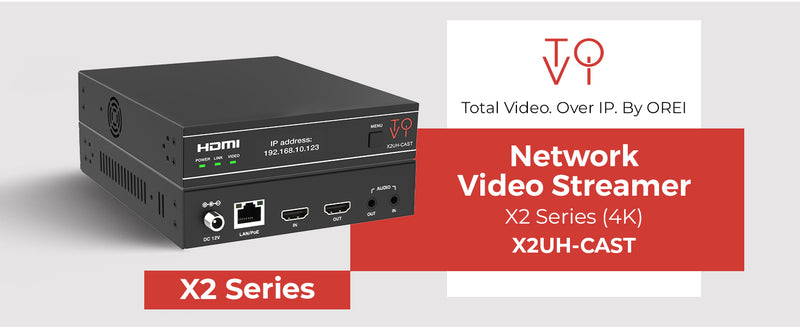

X2 Series (4K) Network Video Streamer - (X2UH-CAST)

Rs. 27,143.00 Rs. 41,361.99
SKU: X2UH-CAST

  • 4K@60Hz H.264/H.265 AV-over-IP Encoding
  • Triple-Stream Output with HDMI™ Loop-Out
  • PoE-Powered with Web GUI & API Control
Add To Wishlist
30 Days Return
30 Days Return
1 Year Warranty
1 Year Warranty
Free Shipping in INDIA
Free shipping in INDIA
Product Image
View details

Professional AV-over-IP Encoder for 4K Streaming, Distribution & Control

X2UH-CAST is a professional-grade AV-over-IP encoder designed for high-quality video streaming, signal distribution, and centralized control. Powered by advanced H.264/H.265 (HEVC) compression, it delivers visually lossless 4K@60Hz (4:4:4) video over standard 100M/1G Ethernet networks, making it ideal for broadcast, enterprise AV, control rooms, and IP-based video systems.

Multi-Stream Encoding & High-Bandwidth Video Performance

The encoder supports triple simultaneous streams, including 4K@60Hz H.264/H.265, 1080P@30Hz H.264, and 720P JPEG, allowing flexible use for live streaming, monitoring, and preview applications. With HDMI™ 2.0b support, up to 18Gbps bandwidth, and HDMI™ loop-out, it ensures smooth, high-resolution video distribution without signal loss.

Flexible Streaming Protocols & Audio Integration

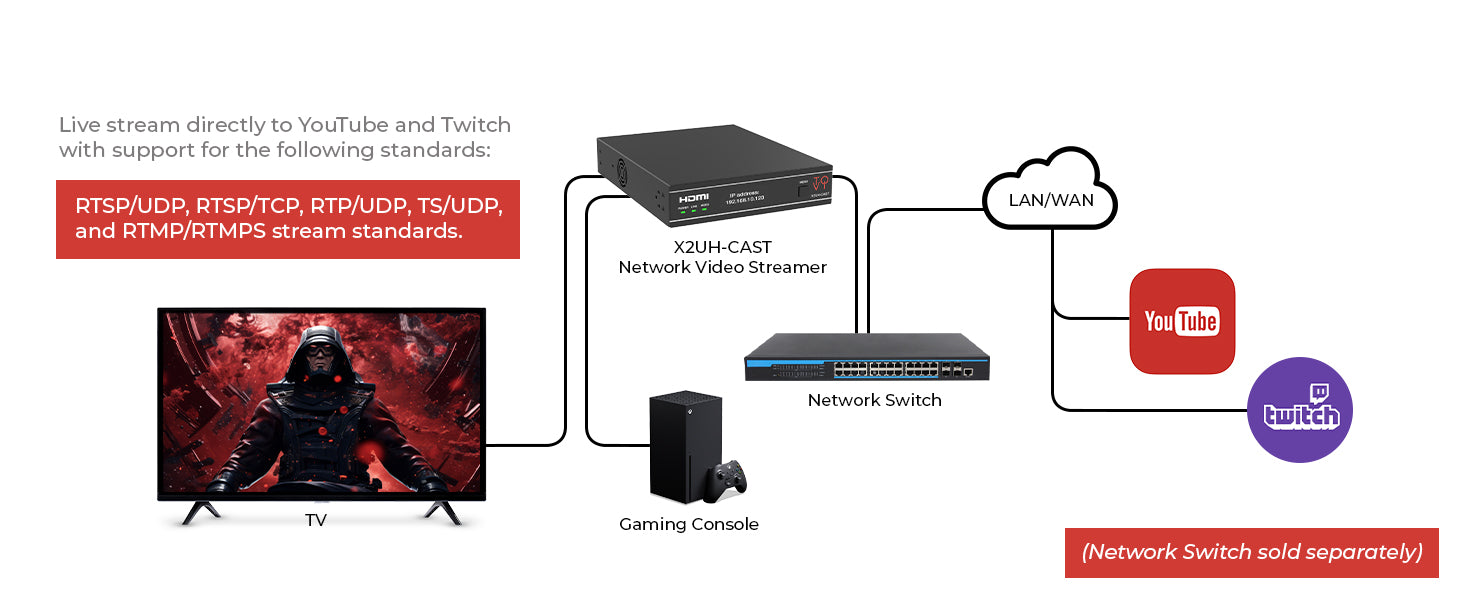

X2UH-CAST supports a wide range of streaming protocols such as RTSP (TCP/UDP), RTP, TS over UDP, and RTMP/RTMPS, enabling seamless integration into existing IP workflows. It offers unicast and multicast streaming, audio-only streams, adjustable audio delay, and supports LPCM 2CH (48kHz) with analog audio embedding and extraction for professional AV environments.

Advanced Control, Security & Installation-Ready Design

Designed for professional installations, the encoder features an intuitive Web GUI (HTTP/HTTPS) along with advanced API control via TELNET, SSH, and TCP socket. It supports PoE (802.3af), EDID management, device discovery with the “SHOW ME” function, and 802.1X network security. Compact and 1U/6U V2 rack-compatible, X2UH-CAST is a reliable, installation-ready solution for scalable AV-over-IP systems.

Professional AV-over-IP Encoder for 4K Streaming, Distribution & Control

Key Features:

  • Video Resolutions – In addition to pristine 4K@60Hz (4:4:4), it supports high-refresh and multi-resolution formats such as 2560×1440@25/30/60Hz, and 4096×2160@25/30/60Hz.
  • Triple Stream Output – 4K@60Hz H.264/H.265 + 1080P@30 H.264 + 720P@5 JPEG.

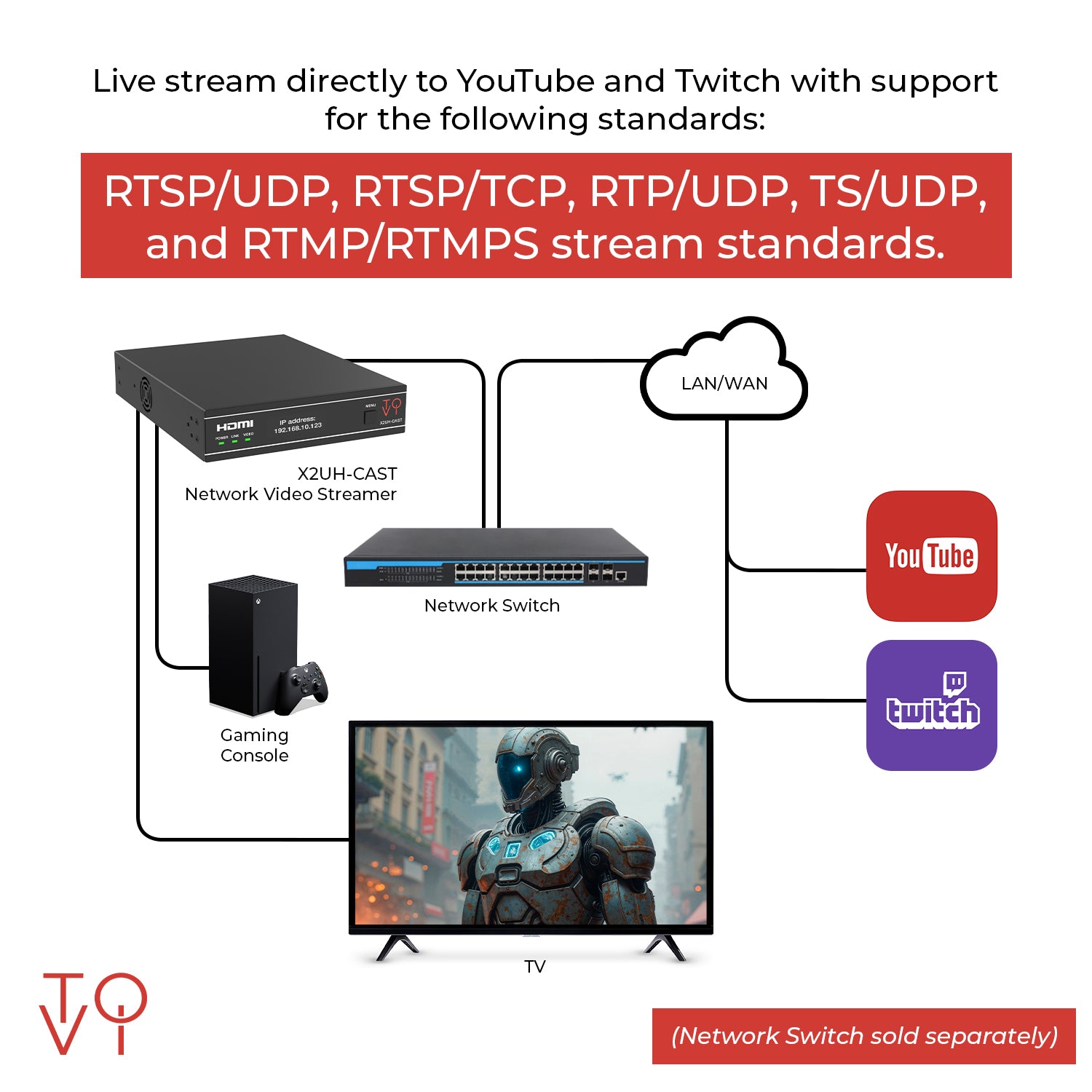

  • Streaming Protocols – RTSP/UDP, RTSP/TCP, RTP/UDP, TS/UDP, RTMP/RTMPS.
  • Flexible Streaming – Supports unicast, multicast, audio-only stream, and audio delay settings.
  • Audio Support – LPCM 2CH (48kHz), analog audio embedding & extraction.

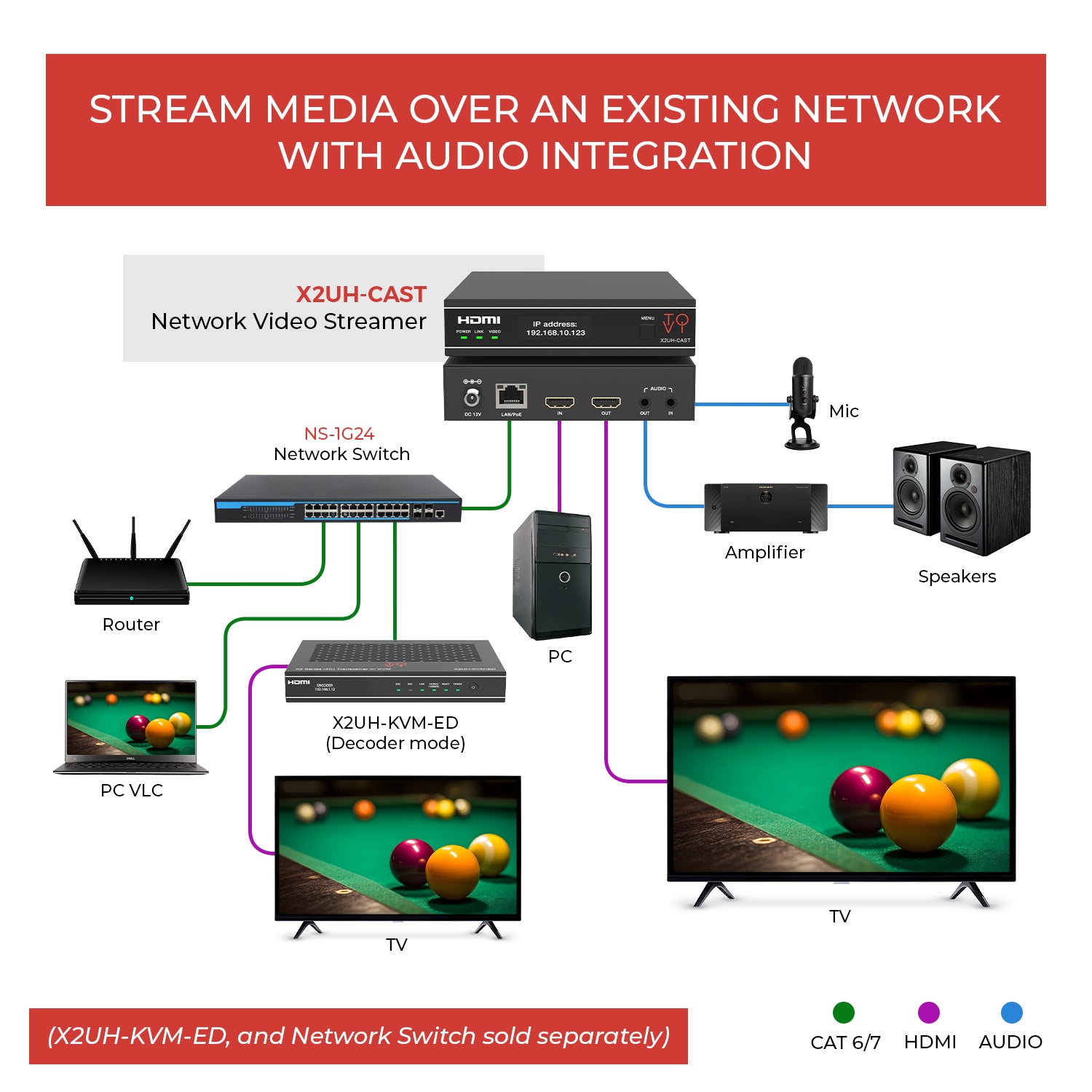

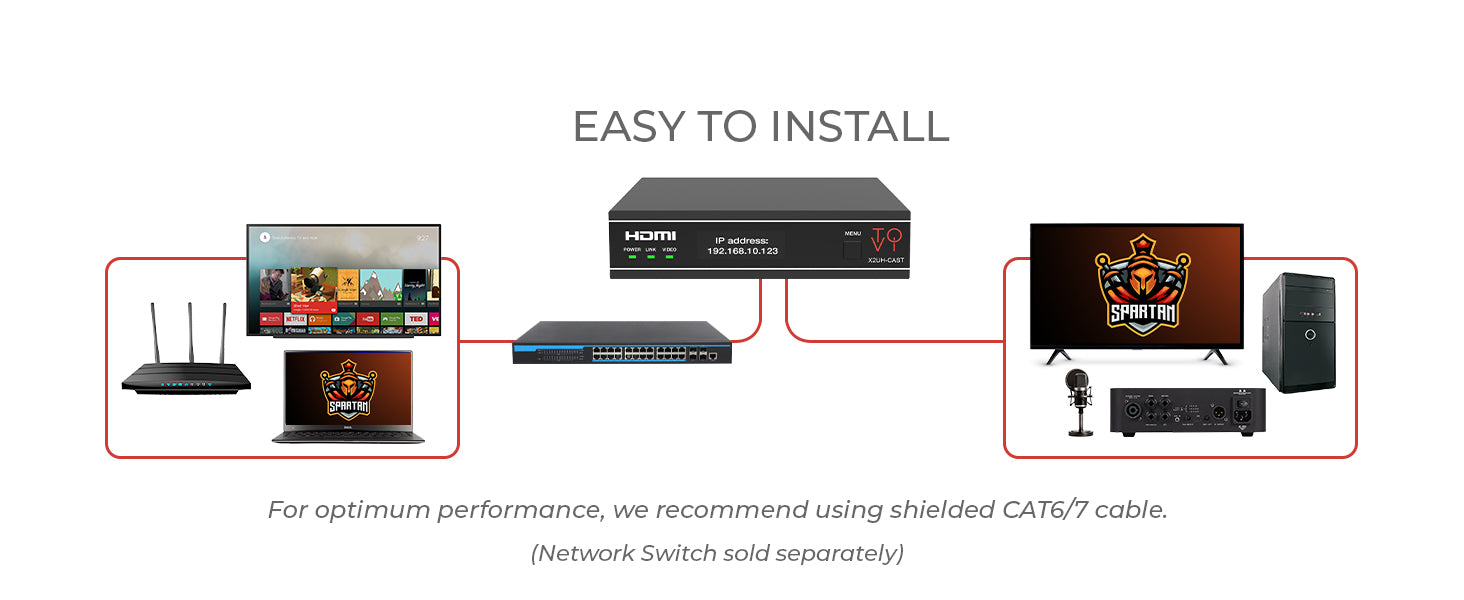

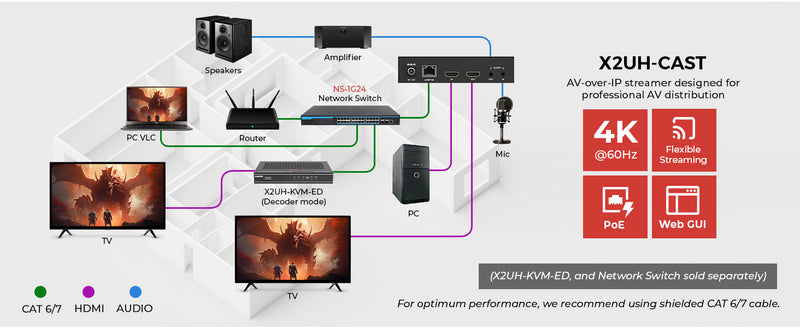

  • Signal Extension & Distribution – HDMI™ loop-out, image preview, point-to-point, and one-to-many distribution.

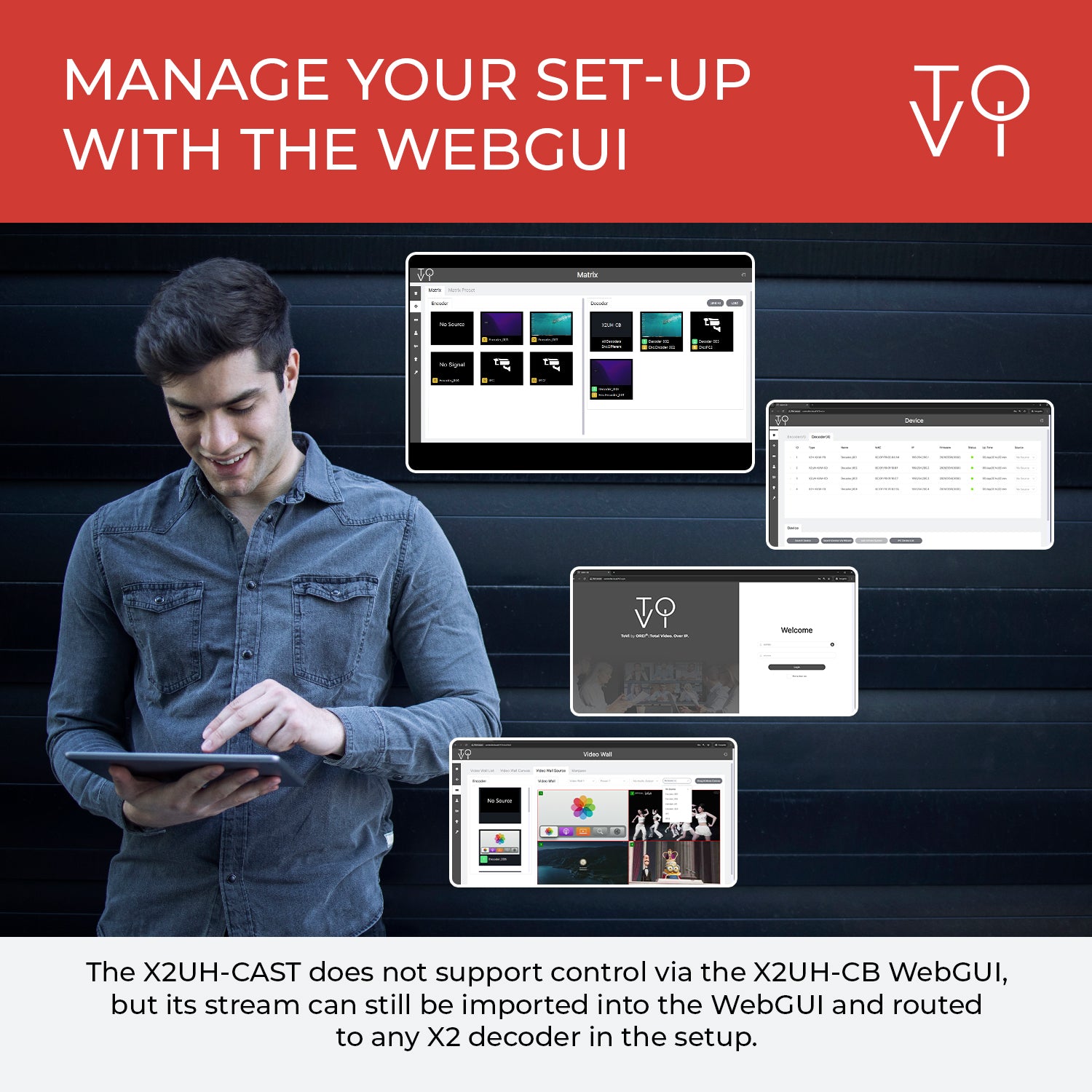

  • Advanced Control – Web GUI (HTTP/HTTPS), API via TELNET/SSH/TCP socket, stream control (play/pause/stop).
  • Network & Power – 100M/1G Ethernet port with PoE (802.3af) support.
  • Management & Security – Device Discovery “SHOW ME” function, EDID configuration, 802.1X protocol.

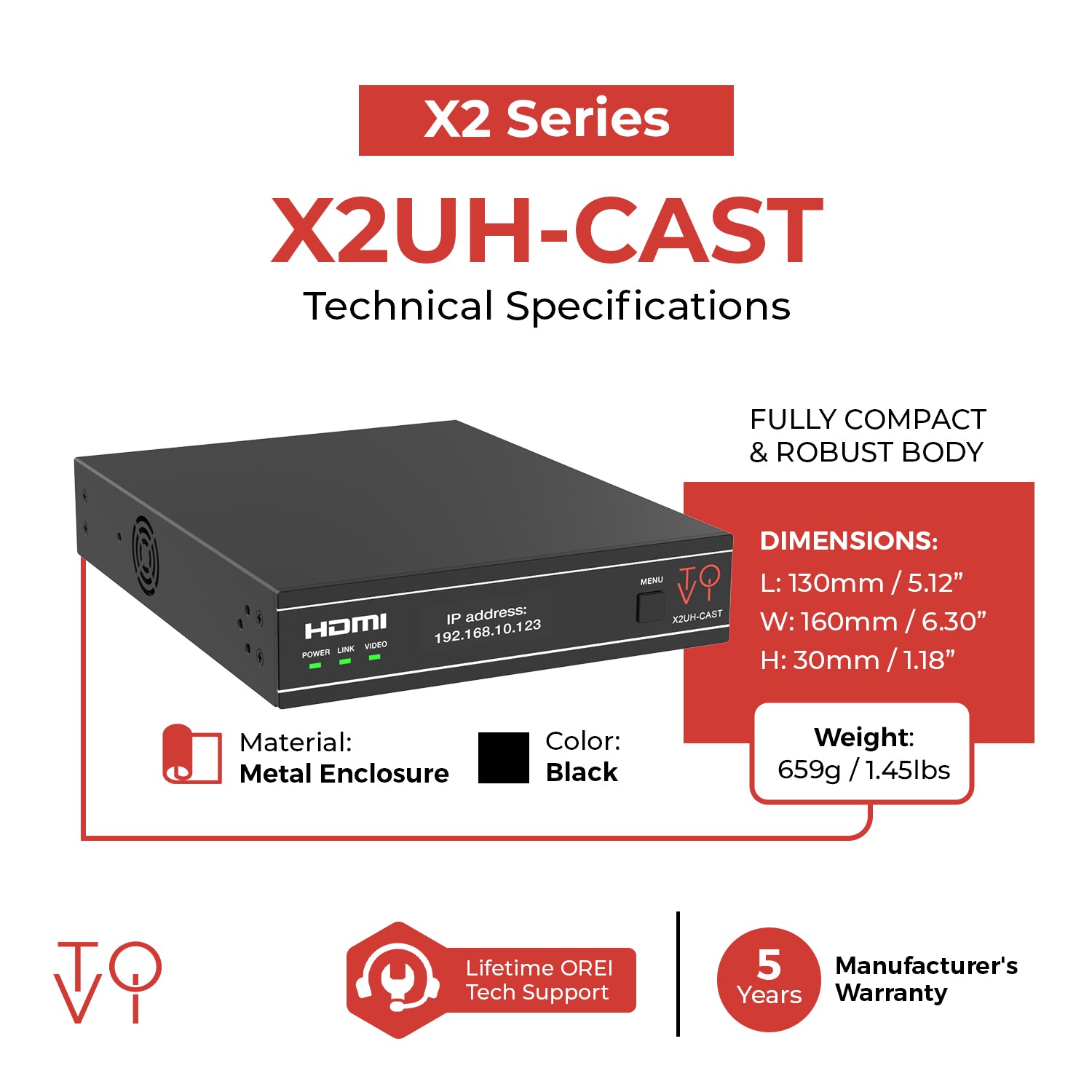

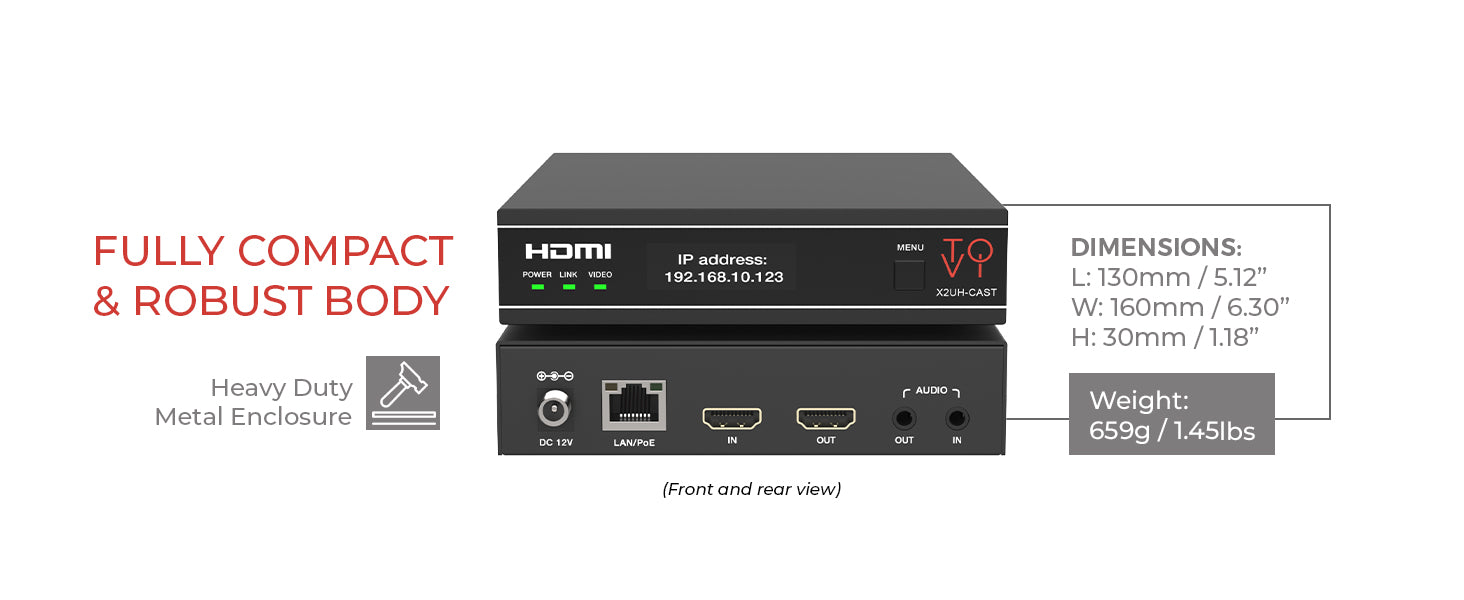

  • Installation Ready – Compatible with 1U/6U V2 rack installation

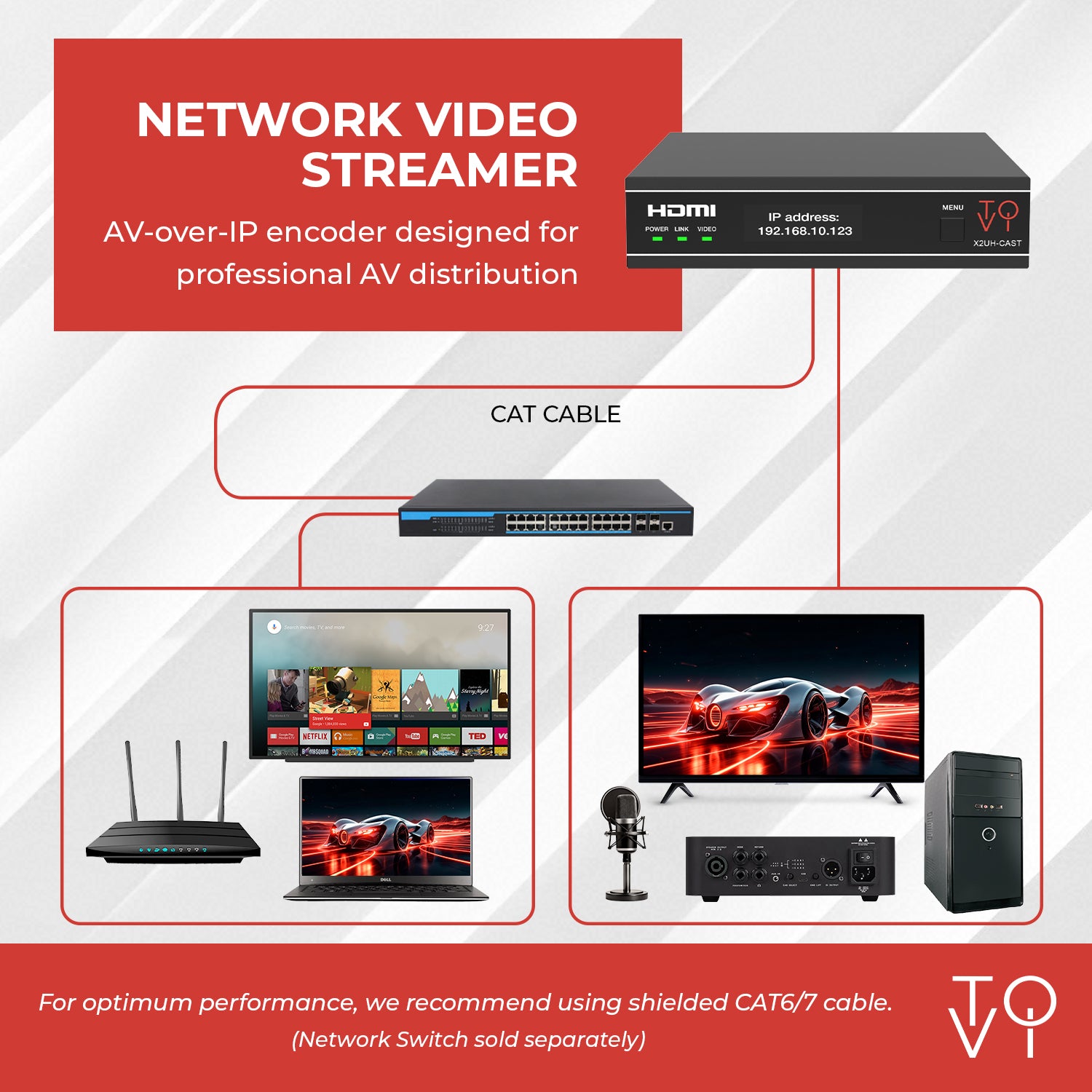

X2UH-CAST is a high-performance AV-over-IP encoder designed for professional AV distribution. Based on H.265/H.264 compression technology, it enables visually lossless 4K@60Hz (4:4:4) video transmission over a 100M/1G Ethernet network. Supporting three simultaneous streams (4K@60Hz H.264/H.265, 1080P@30Hz H.264, and 720P@50Hz JPEG), it ensures maximum flexibility for streaming, preview, and monitoring applications

With HDMI™ loop-out, analog audio embedding/extracting, and full compatibility with streaming standards like RTSP, RTP, TS, RTMP/RTMPS, this AV Streamer is a versatile solution for broadcasting, control rooms, and AV-over-IP installations. Its Web GUI offers intuitive setup and management, while advanced API controls allow seamless integration with third-party control systems. Compact and 1U/6U V2 rack-compatible, it supports PoE (802.3af), features an OLED display, and includes advanced functions like device discovery, unicast/multicast streaming, EDID configuration, and security with 802.1X protocol.

Note: The X2UH-CAST supports Unicast and Multicast RTSP stream with max resolution up to 4K@60Hz. The main and sub stream URL is mentioned below.

Unicast Main: rtsp://[Device IP]:554/live/main/unicast/av_stream
Unicast Sub: rtsp://[Device IP]:554/live/second/unicast/av_stream

Multicast Main: rtsp://[Device IP]:554/live/main/multicast/av_stream
Multicast Sub: rtsp://[Device IP]:554/live/second/multicast/av_stream
