DP/HDMI™ Combo Input with Automatic Detection

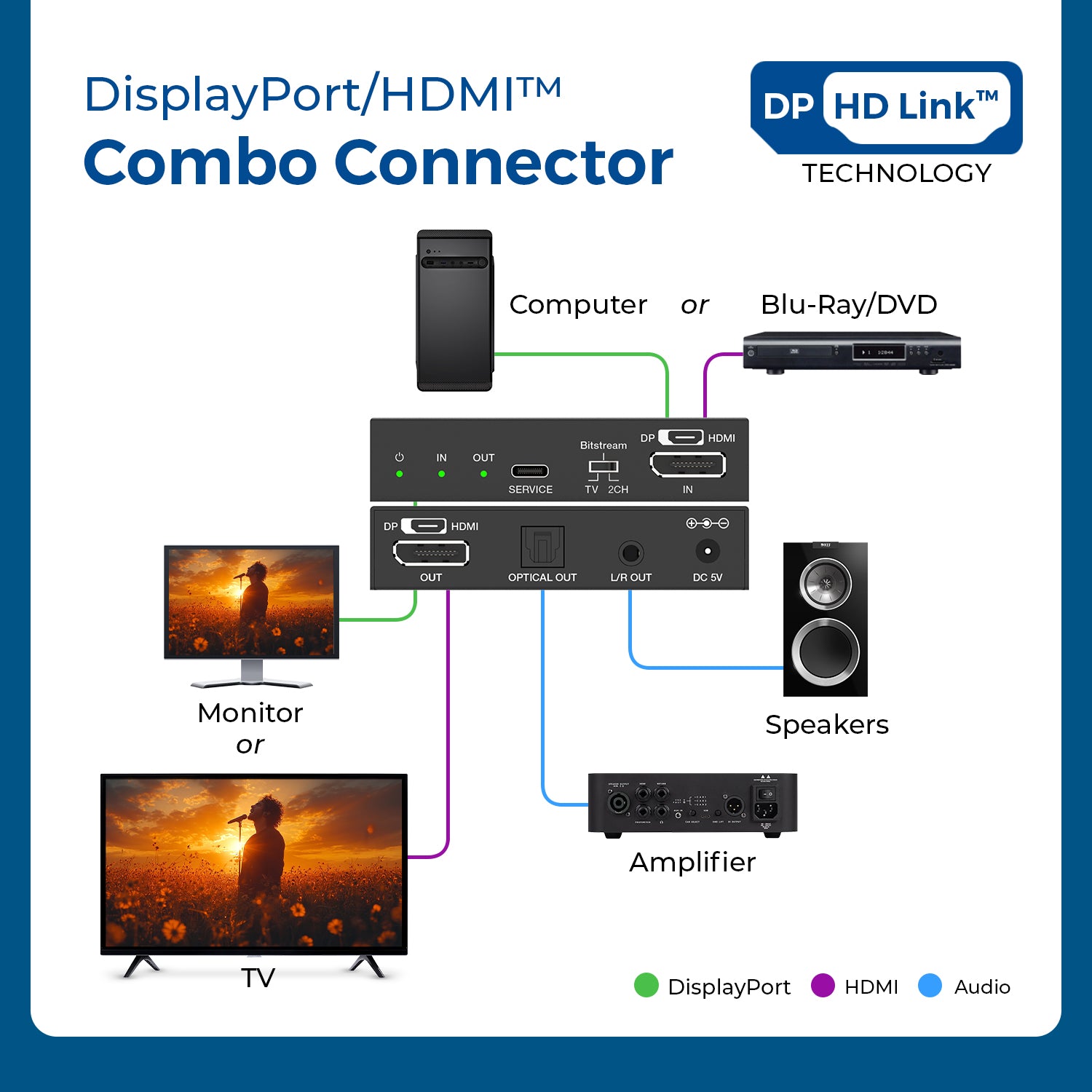

The DPHD-912 is a high-performance DP and HDMI™ audio extractor designed to provide maximum flexibility in modern AV environments. Featuring OREI’s advanced DP|HD combo connector technology, a single input and output port can automatically detect and handle either DisplayPort or HDMI™ signals, making it ideal for mixed-signal installations in professional AV systems and home theaters.
Ultra-High Resolution & Bandwidth Support
Compliant with DisplayPort 1.4 (Alt Mode), HDMI™ 2.0b, and HDCP 2.3, the DPHD-912 supports ultra-high video resolutions up to 8K@30Hz and 4K@120Hz via DisplayPort, and 4K@60Hz via HDMI™. With bandwidth support of 32.4Gbps for DP and 18Gbps for HDMI™, it delivers uncompressed video while passing through advanced HDR formats including HDR10, HDR10+, Dolby Vision, and HLG for exceptional image quality.
Advanced HDR & Content Protection Compliance
This extractor supports full 4-way signal conversion—DP to DP, DP to HDMI™, HDMI™ to DP, and HDMI™ to HDMI™—ensuring seamless compatibility across a wide range of source and display devices. Audio is extracted simultaneously through optical (SPDIF) and 3.5mm analog outputs, with support for LPCM 2CH, Dolby Digital 2/5.1, and DTS 2/5.1 on optical output, and LPCM 2.0 stereo via the 3.5mm port.
Simultaneous Digital & Analog Audio Extraction
Designed for easy integration, the DPHD-912 includes CEC pass-through to maintain device control signals and an EDID management switch for stable compatibility between connected sources, displays, and audio systems. Housed in a compact, durable enclosure, it is an ideal solution for professional AV installations, control rooms, conference spaces, and high-end home theater setups requiring reliable 8K-ready audio extraction.

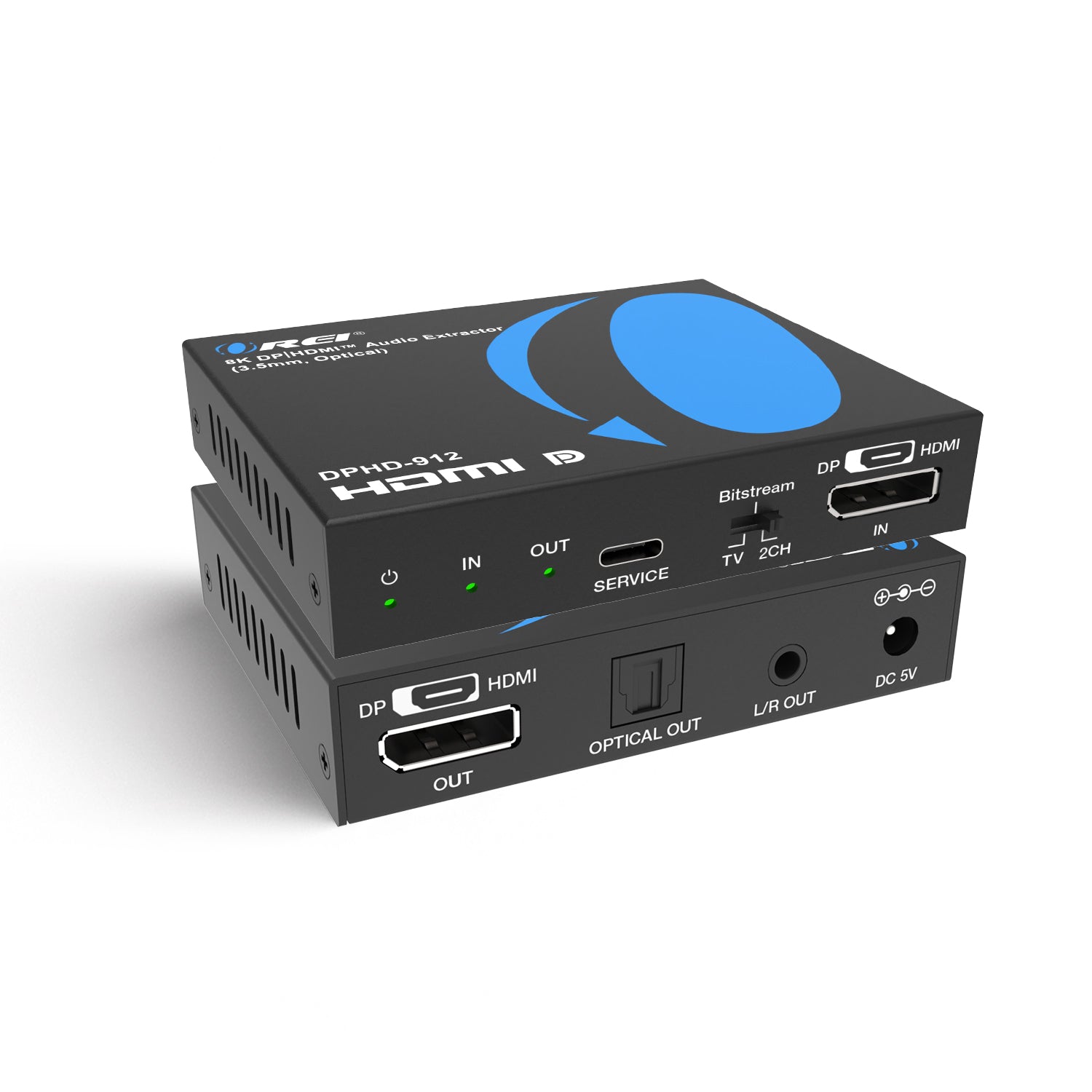

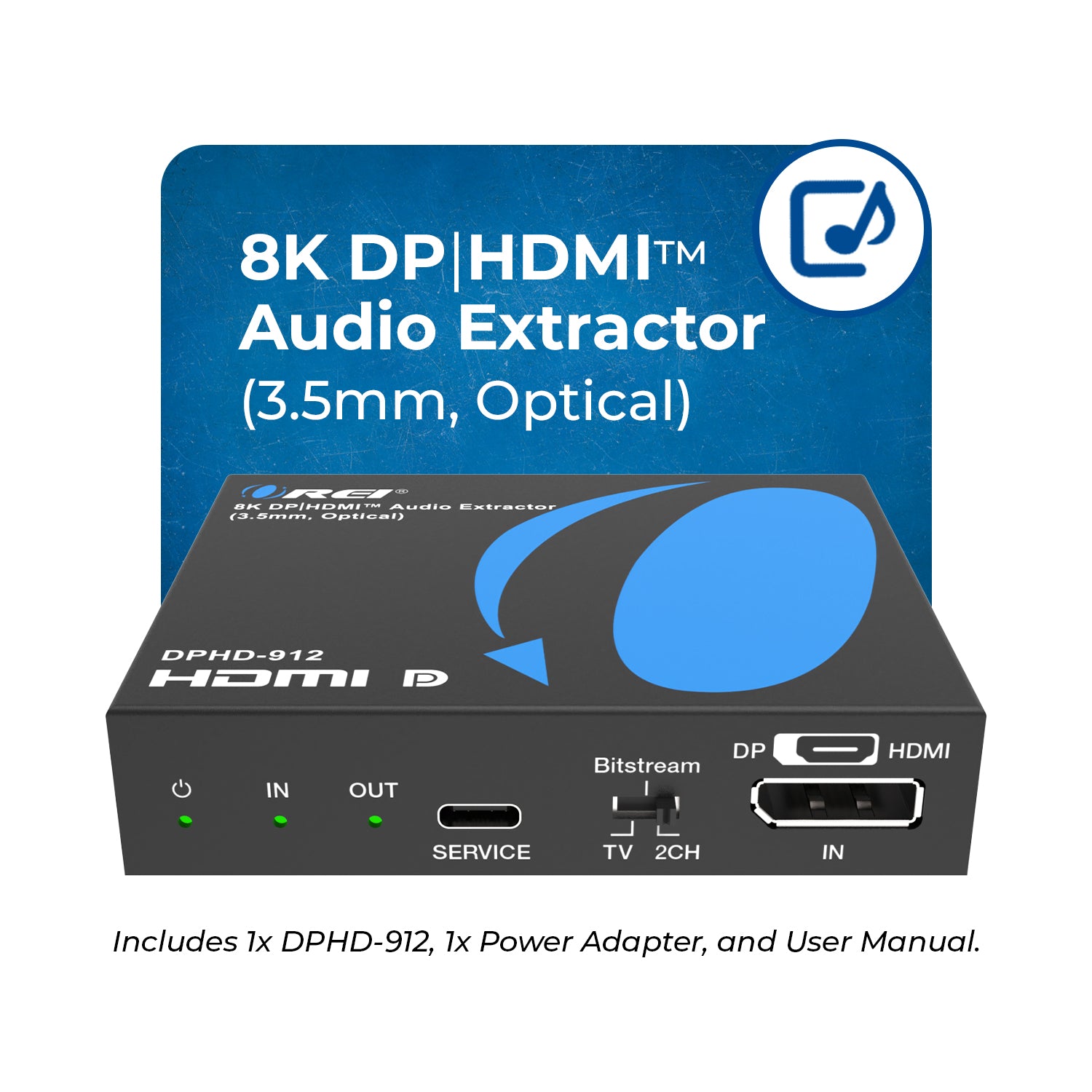

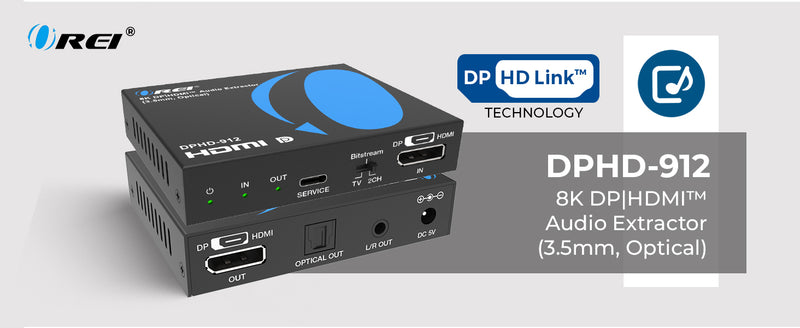

8K DP HDMI™ Audio Extractor (3.5mm, Optical) - DPHD-912
-

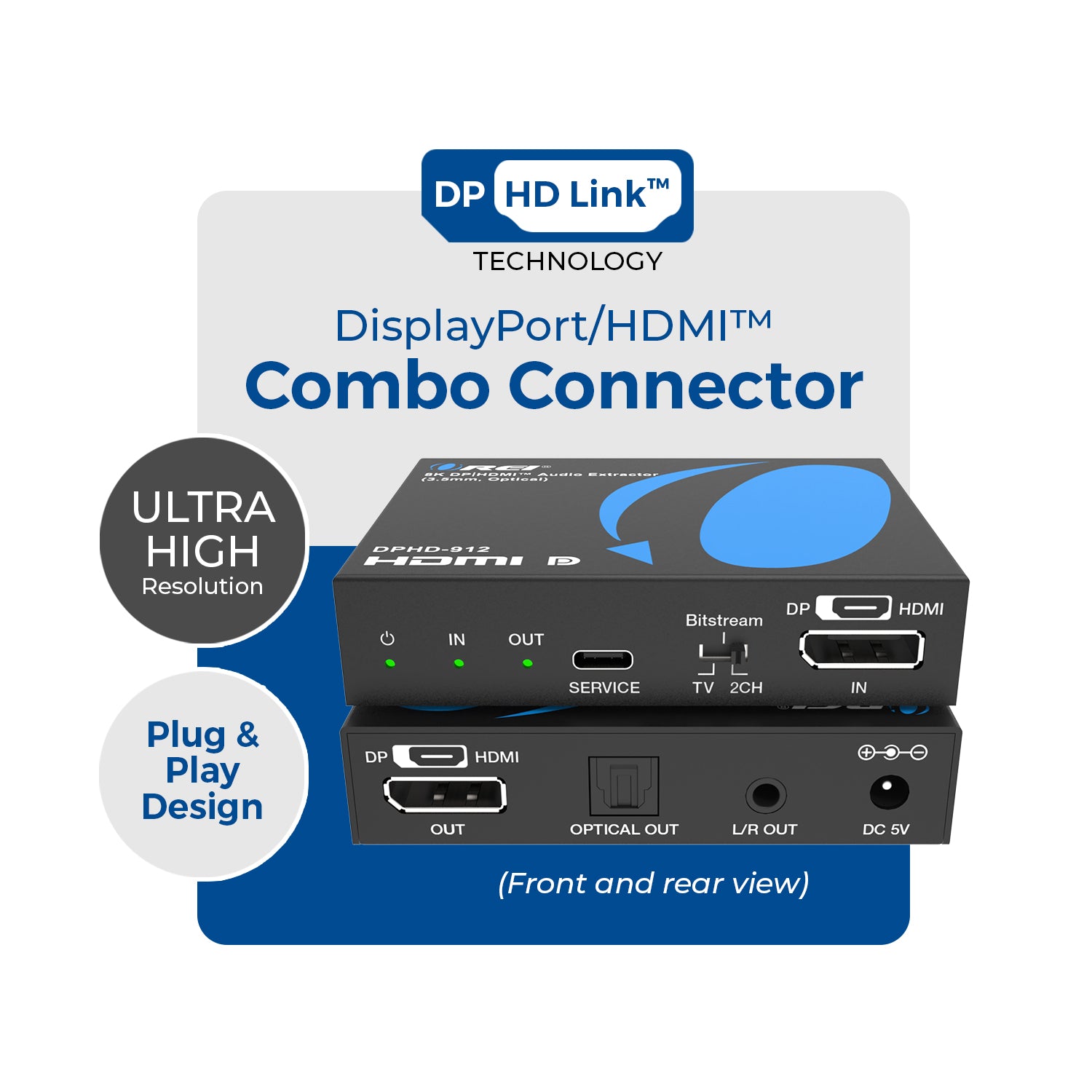

DisplayPort/HDMI™ Combo Connector – Supports both DP and HDMI™ interfaces on input and output ports for maximum installation fl exibility.
-
HDCP 2.3 & DisplayPort 1.4 Alt mode Compliant – Ensures compatibility with the latest media and content protection standards.
-
Ultra-High Video Resolutions – Up to 8K@30Hz, 4K@120Hz for DP input and 4K@60Hz for HDMI™ input.
-
High Bandwidth – Supports 32.4Gbps (DP) and 18Gbps (HDMI™) video bandwidth.
-
Advanced HDR Pass-Through – Supports HDR10, HDR10+, Dolby Vision, and HLG formats.
-

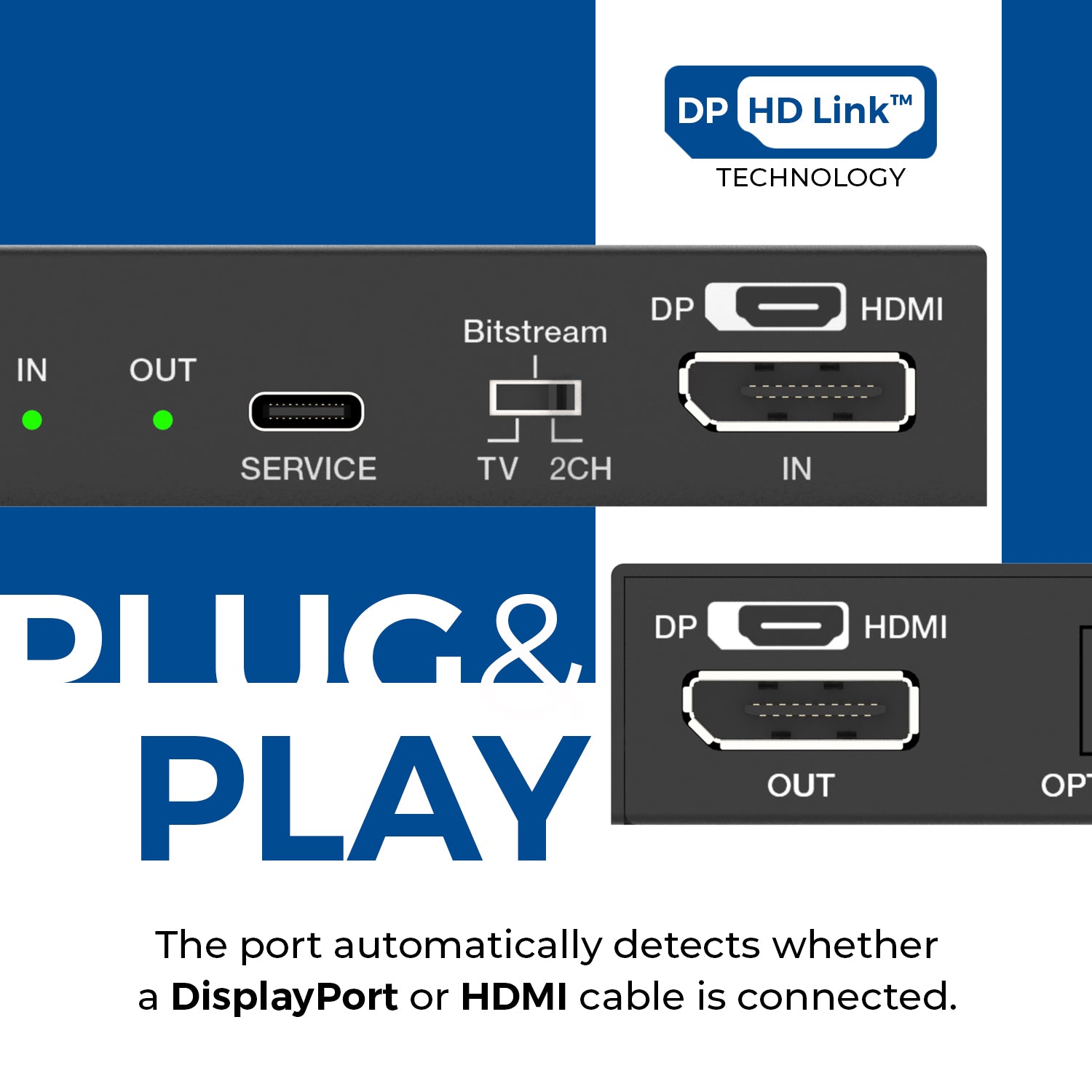

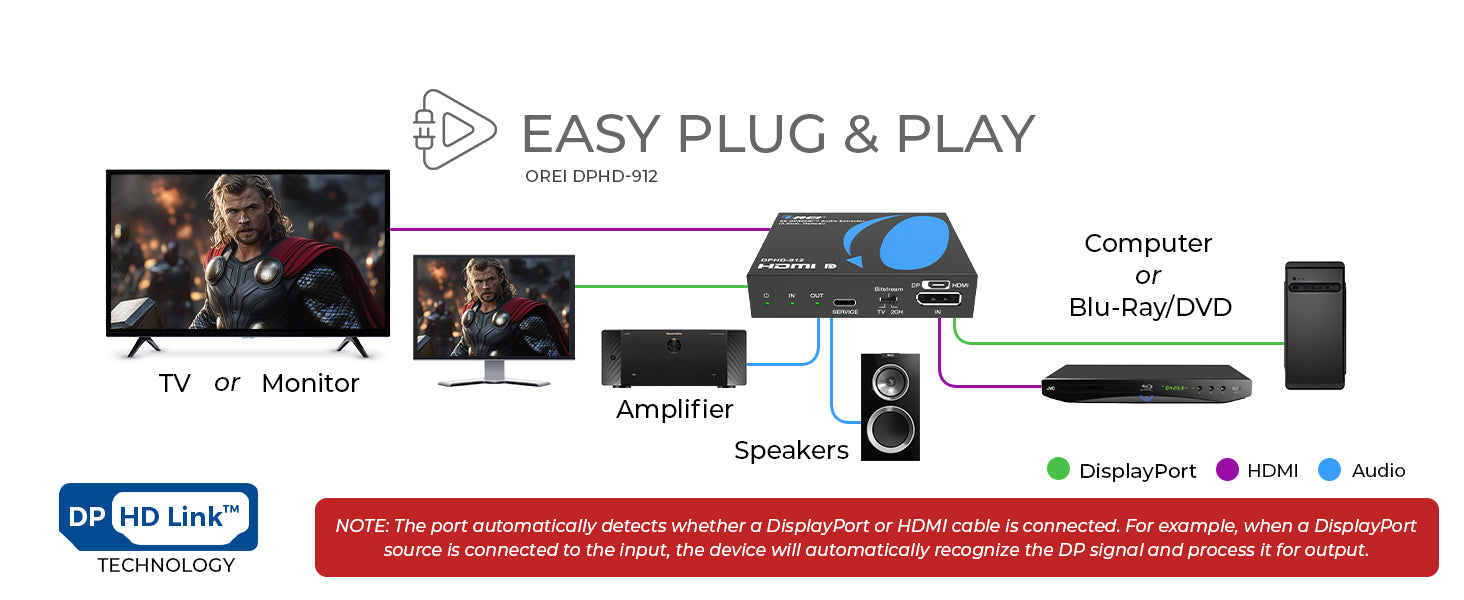

Automatic Interface Detection– Automatically recognizes DP/ HDMI™ signals on both input and output ports.
-

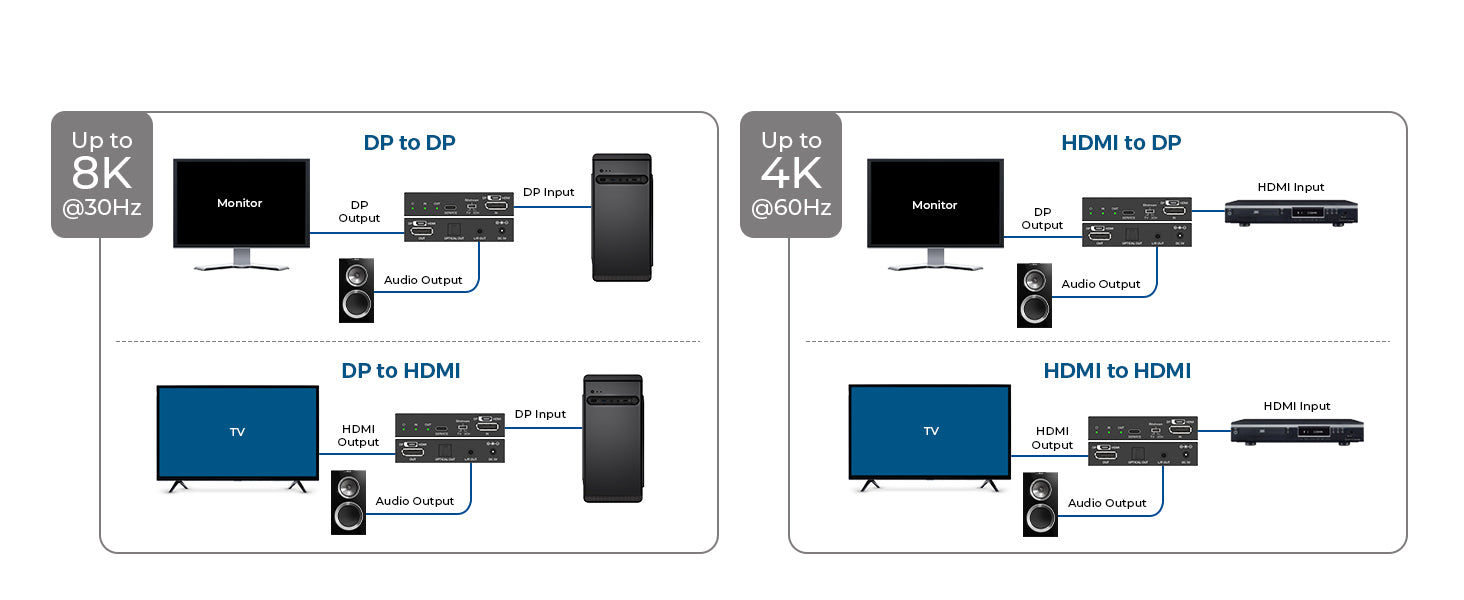

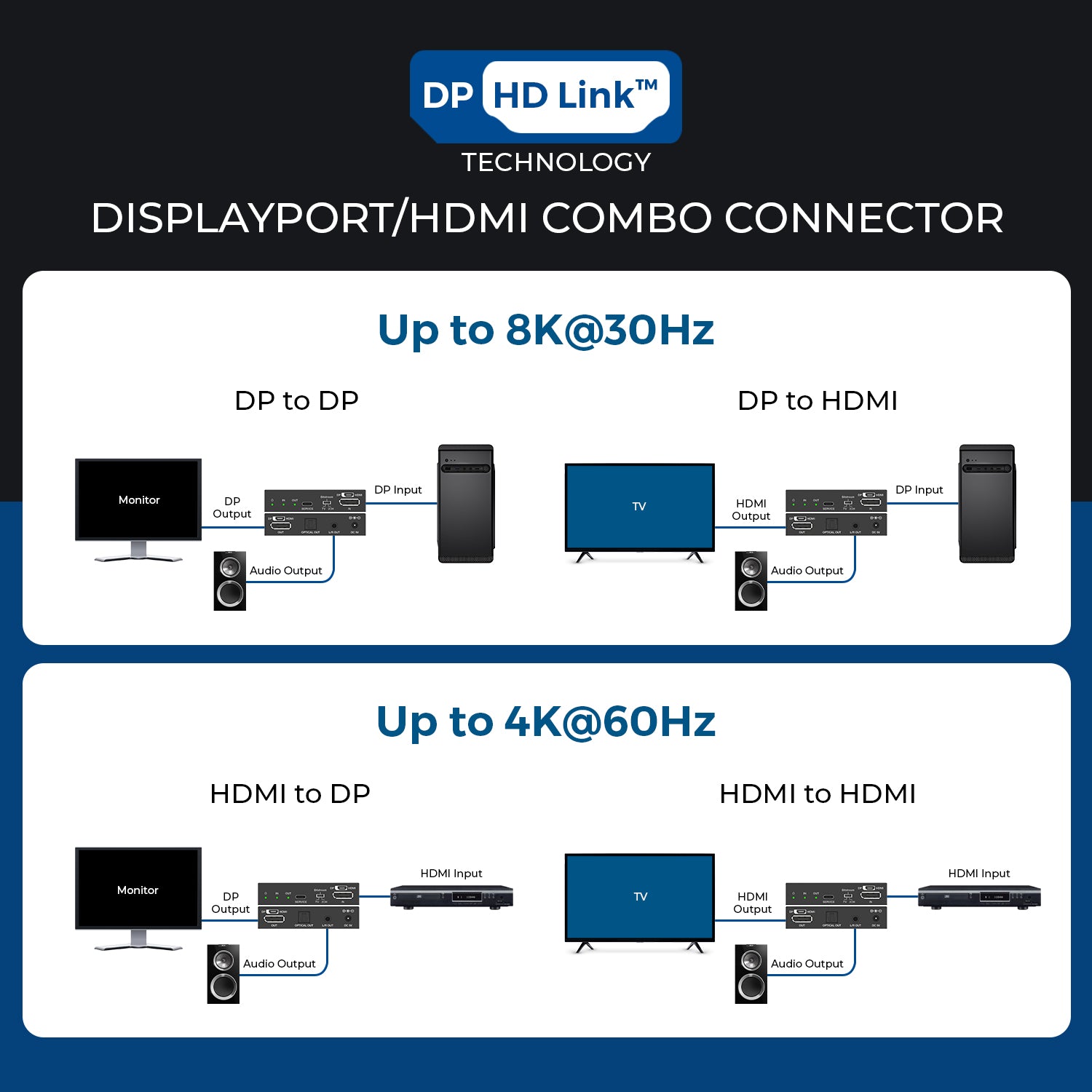

4-Way Signal Conversion – Fully supports DP->DP, DP->HDMI™, HDMI™->DP, and HDMI™->HDMI™ conversions.

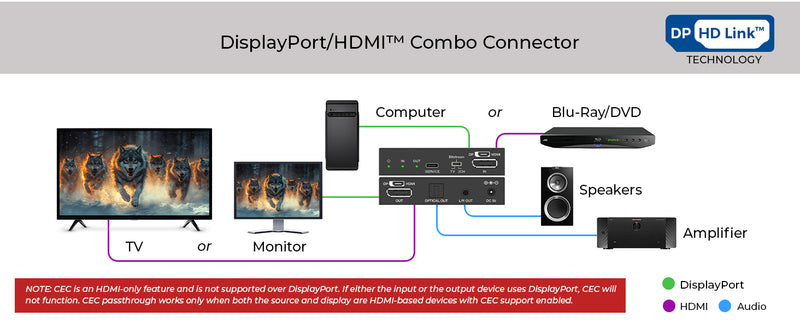

- CEC Pass-Through – Maintains device control signals across the converter.

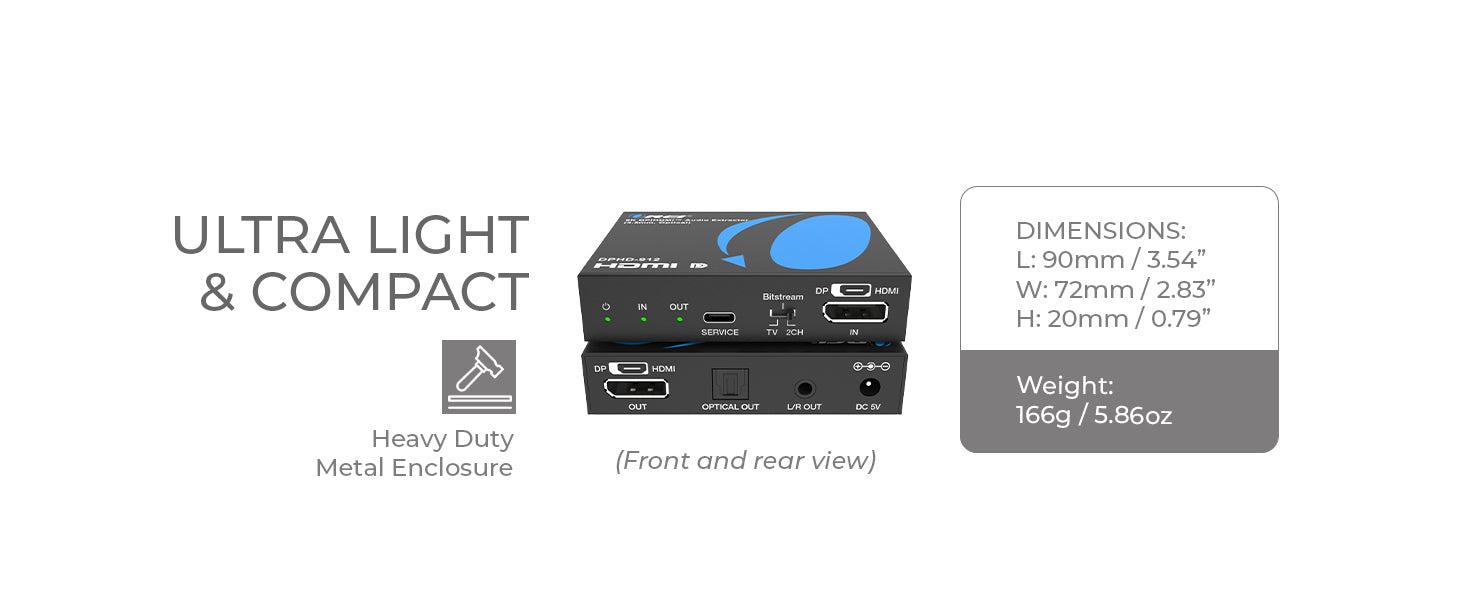

- Compact & Flexible Design – Space-saving form factor ideal for professional AV, home theater, and mixed-signal display setups.
The DPHD-912 audio extractor features OREI’s latest DP|HD combo technology, allowing a single input port to accept either DisplayPort or HDMI™ signals for maximum fl exibility. It is designed to extract audio from HDMI™- or DP-compliant sources such as computers, media players, set-top boxes, and streaming devices, and output the audio simultaneously through optical (SPDIF) and 3.5mm stereo ports.
Compliant with HDMI™ 2.0b, DisplayPort 1.4 (ALT Mode), and HDCP 2.3, the DPHD-912 supports high-resolution video up to 8K@30Hz and 4K@120Hz via DisplayPort, and 4K@60Hz via HDMI™, with bandwidth support of 32.4Gbps (DP) and 18Gbps (HDMI™). It also passes through advanced video formats including HDR, HDR10, HDR10+, Dolby Vision, and HLG, along with CEC support for compatible devices.
For audio output, the optical port supports LPCM 2CH, Dolby Digital 2/5.1, and DTS 2/5.1, while the 3.5mm port delivers analog LPCM 2.0 audio. An EDID management switch ensures reliable compatibility across different source and audio device combinations. Housed in a compact and durable enclosure, the DPHD-912 is well suited for both home and professional AV installations.
