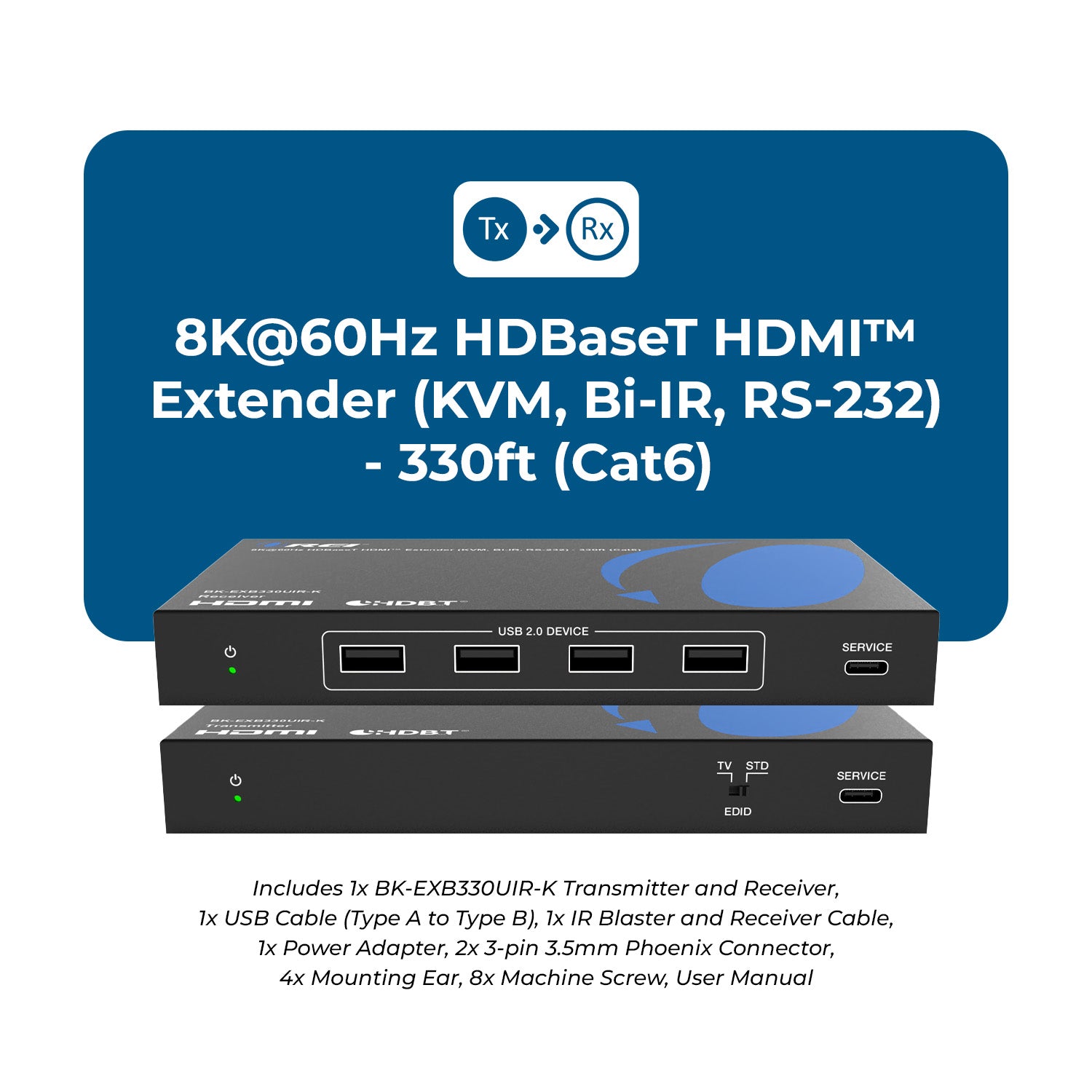

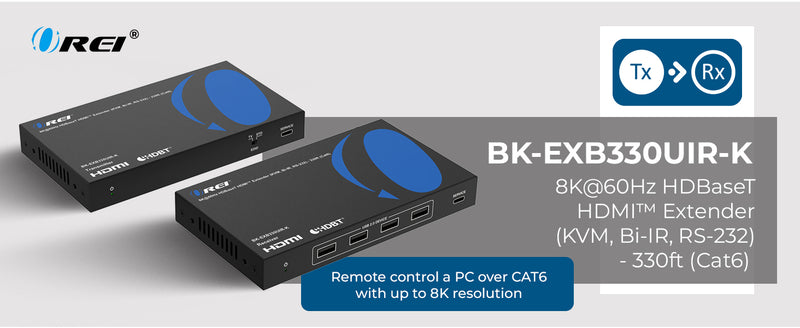

OREI BK-EXB330UIR-K: 8K@60HZ HDBASET HDMI™ EXTENDER (KVM, BI-IR, RS-232) - 330FT (CAT6)
-
HDMI™ 2.1 & HDCP 2.3 Compliant – Ensures full compatibility with next-generation HDMI™ sources and protected content, supporting the latest AV standards.
-
Ultra-High Video Bandwidth – Supports up to 48Gbps FRL and 18Gbps TMDS, delivering uncompressed, high-frame-rate video performance.
-

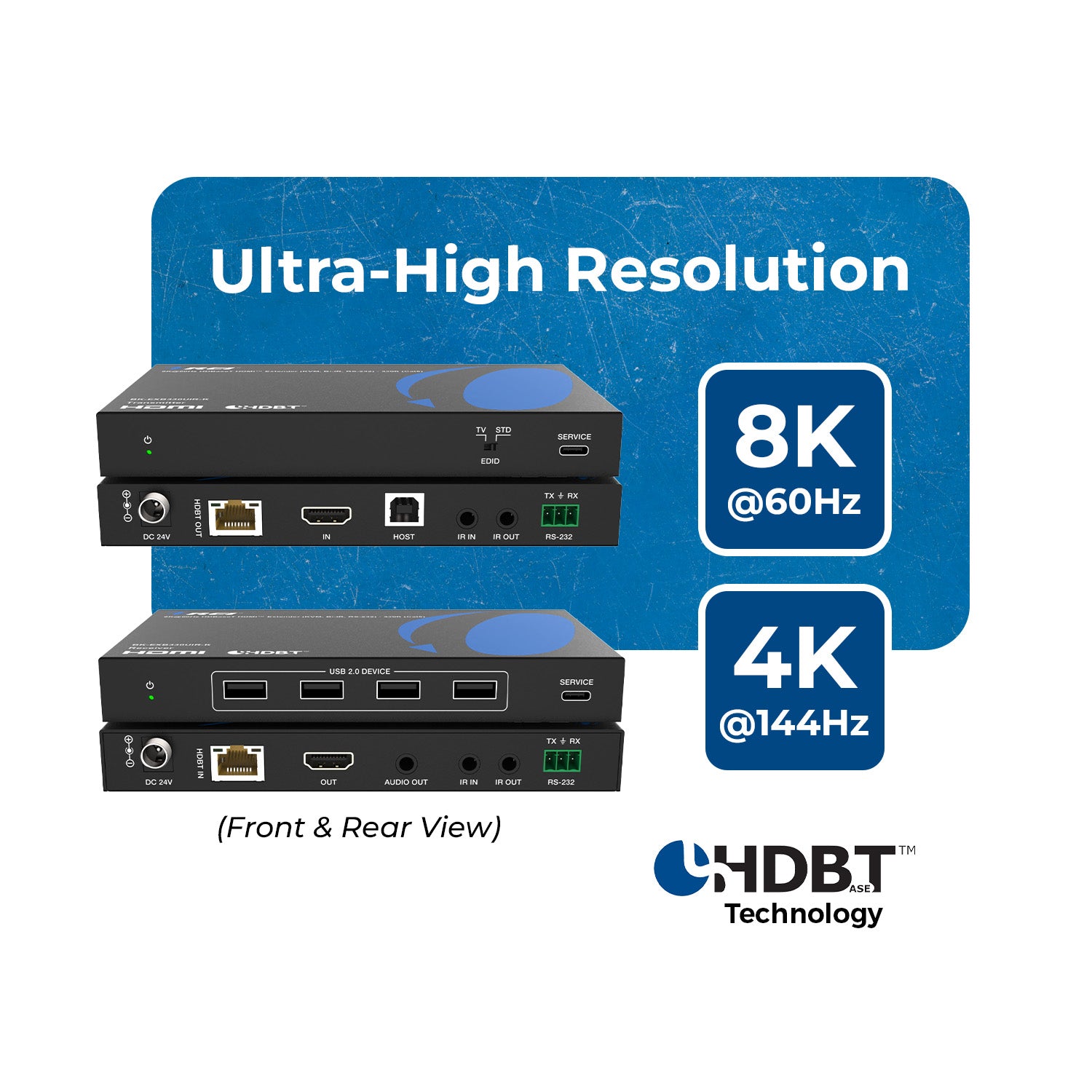

8K & High-Refresh 4K Video Support – Handles resolutions up to 8K@60Hz (4:2:0, 12-bit) and 4K@144Hz (4:4:4).
-
Long-Distance HDBaseT Transmission – Extends HDMI™ signals up to 100m / 328ft over a single CAT5e/6/7 cable with no signal degradation.
-
Advanced HDMI™ 2.1 Gaming Features – Supports VRR, ALLM, QMS, QFT, and SBTM for smooth motion, reduced latency, and enhanced gaming performance.
-
HDR Pass-Through Support – Compatible with HDR10, HDR10+, Dolby Vision, and HLG for superior contrast and color depth.
-
USB 2.0 KVM Functionality – Enables transmission of USB 2.0 signals alongside HDMI™ over the same cable enabling remote control of a PC.
-
Comprehensive Audio Format Support – Supports LPCM, Dolby Digital / Plus / EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-HD Master Audio, DTS:X, and more through HDMI.
-
Audio De-Embedding on Receiver – Allows audio extraction at the receiving end for flexible audio routing.
-
Bi-Directional Control & CEC Pass-Through – Supports bi-directional IR, RS-232, and HDMI™ CEC for full remote device control.
-
Advanced EDID Management – Includes two EDID modes (TV / STD) for optimized source-to-display compatibility.
-

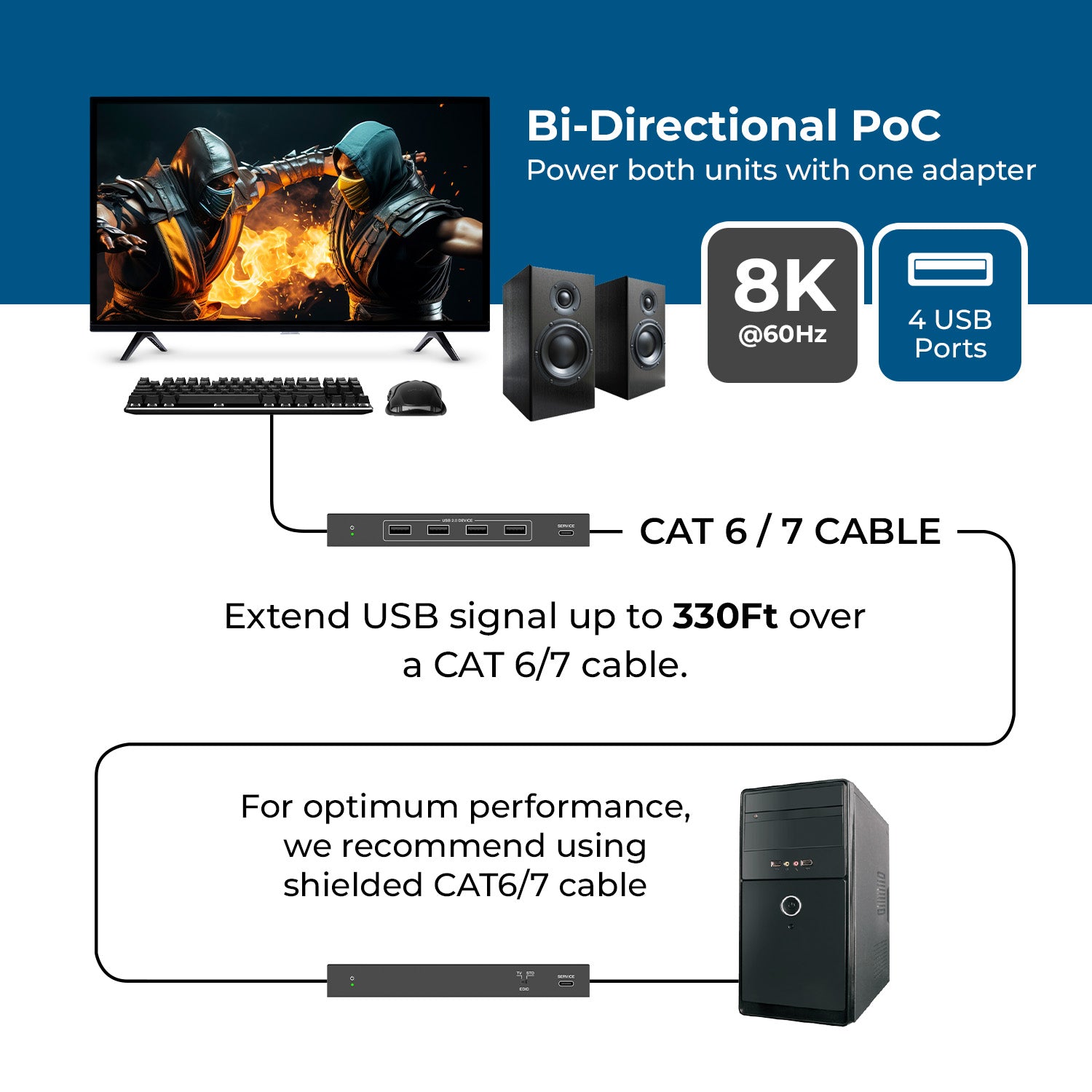

Bi-Directional PoC (Power over Cable) – Requires a single power adapter on either side to power both units.

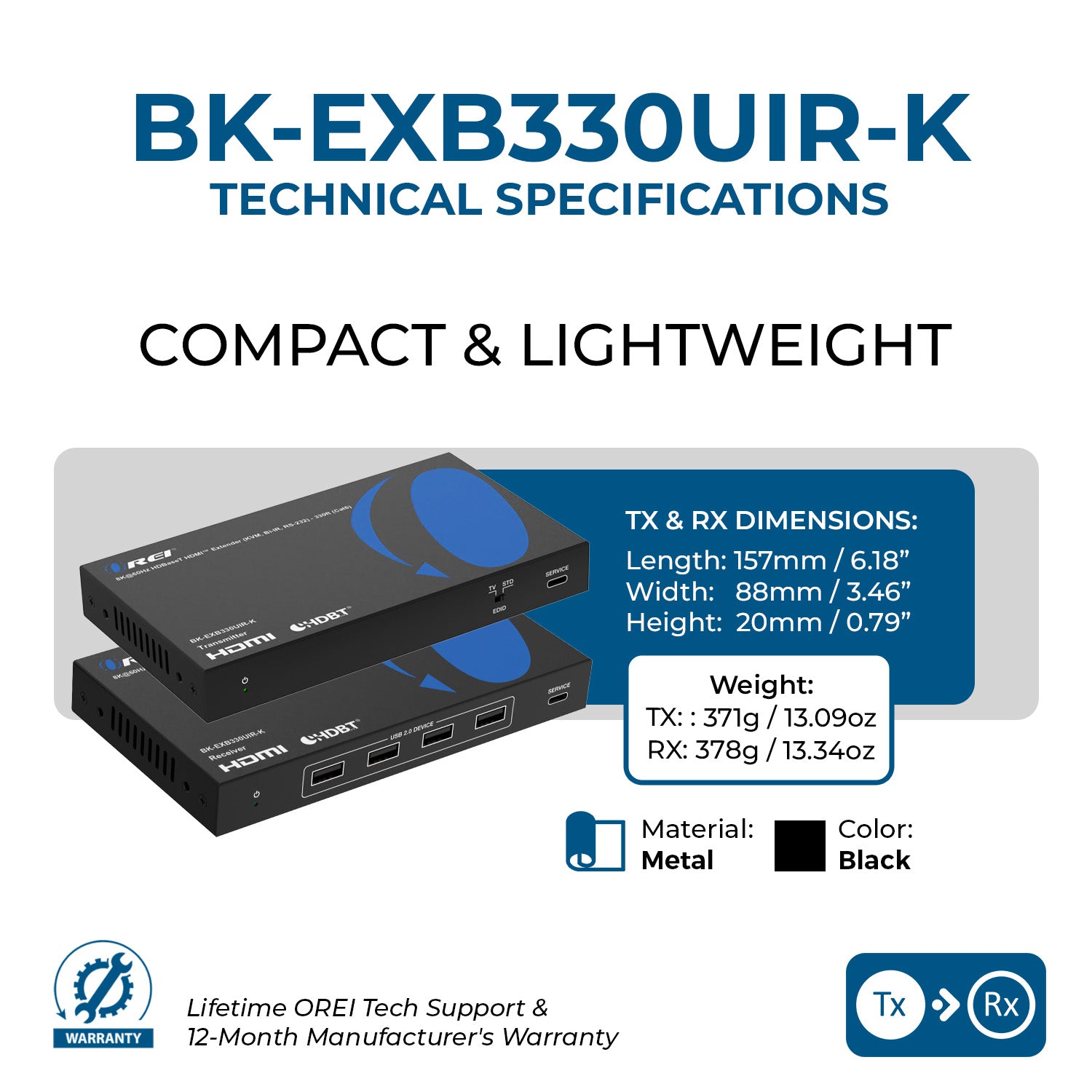

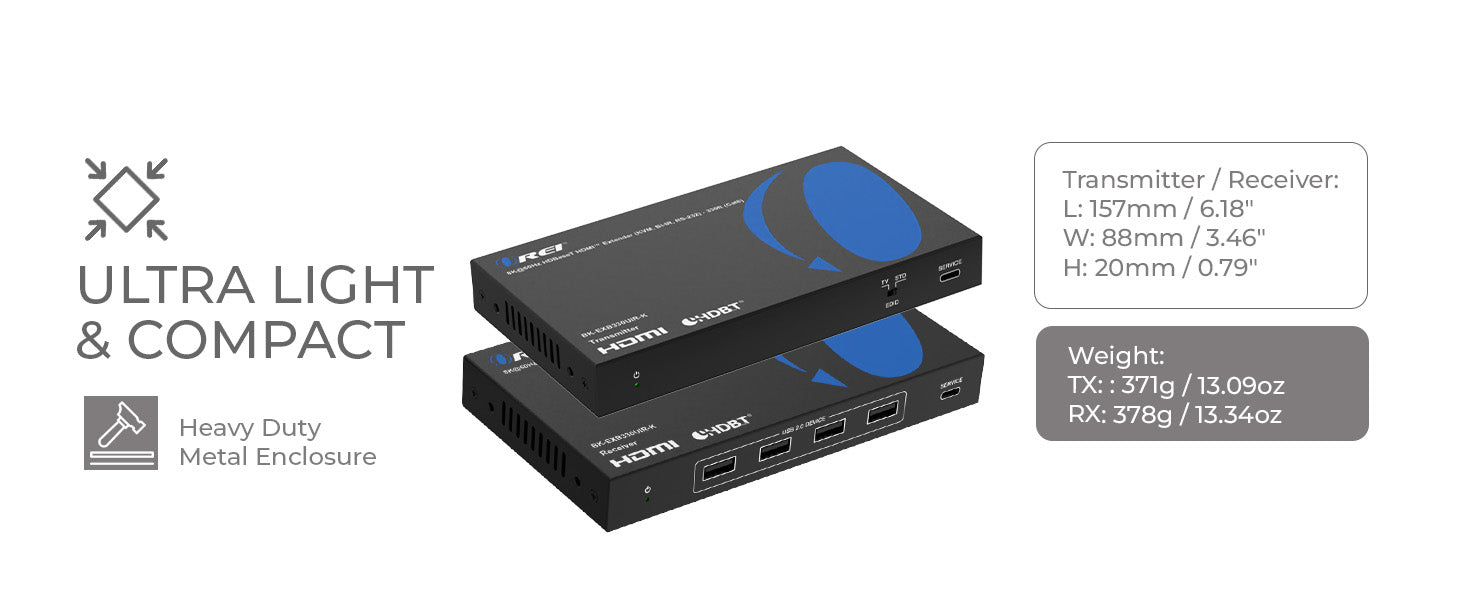

- Compact & Installation-Friendly Design – Space-saving form factor ideal for professional and residential AV installations.

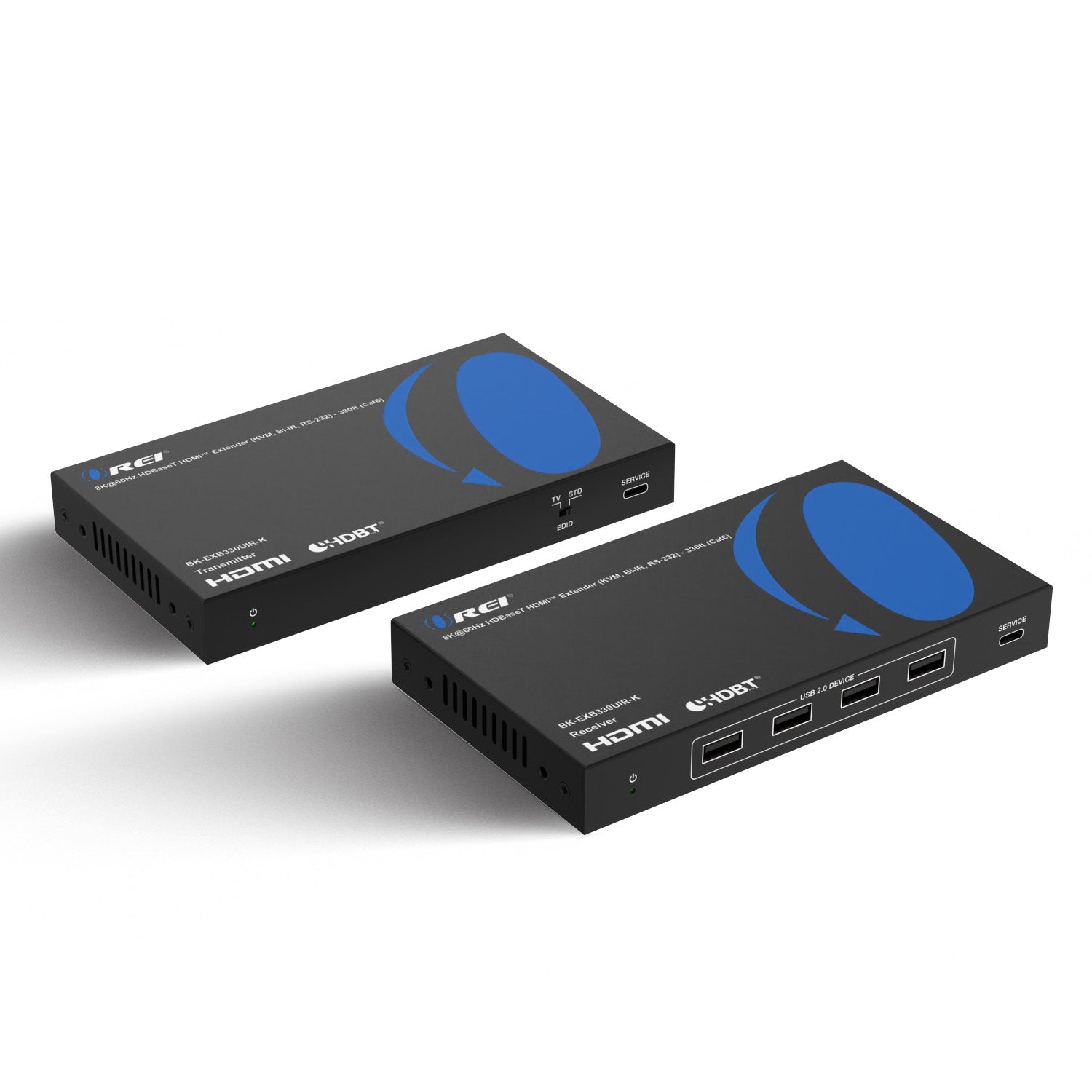

The BK-EXB330UIR-K HDMI™ 2.1 HDBaseT extender is designed to transmit ultra-high-definition video, audio, USB 2.0, and control signals over long distances with exceptional reliability. Supporting resolutions up to 8K@60Hz and 4K@144Hz, it delivers next-generation AV performance for demanding professional and home entertainment environments.

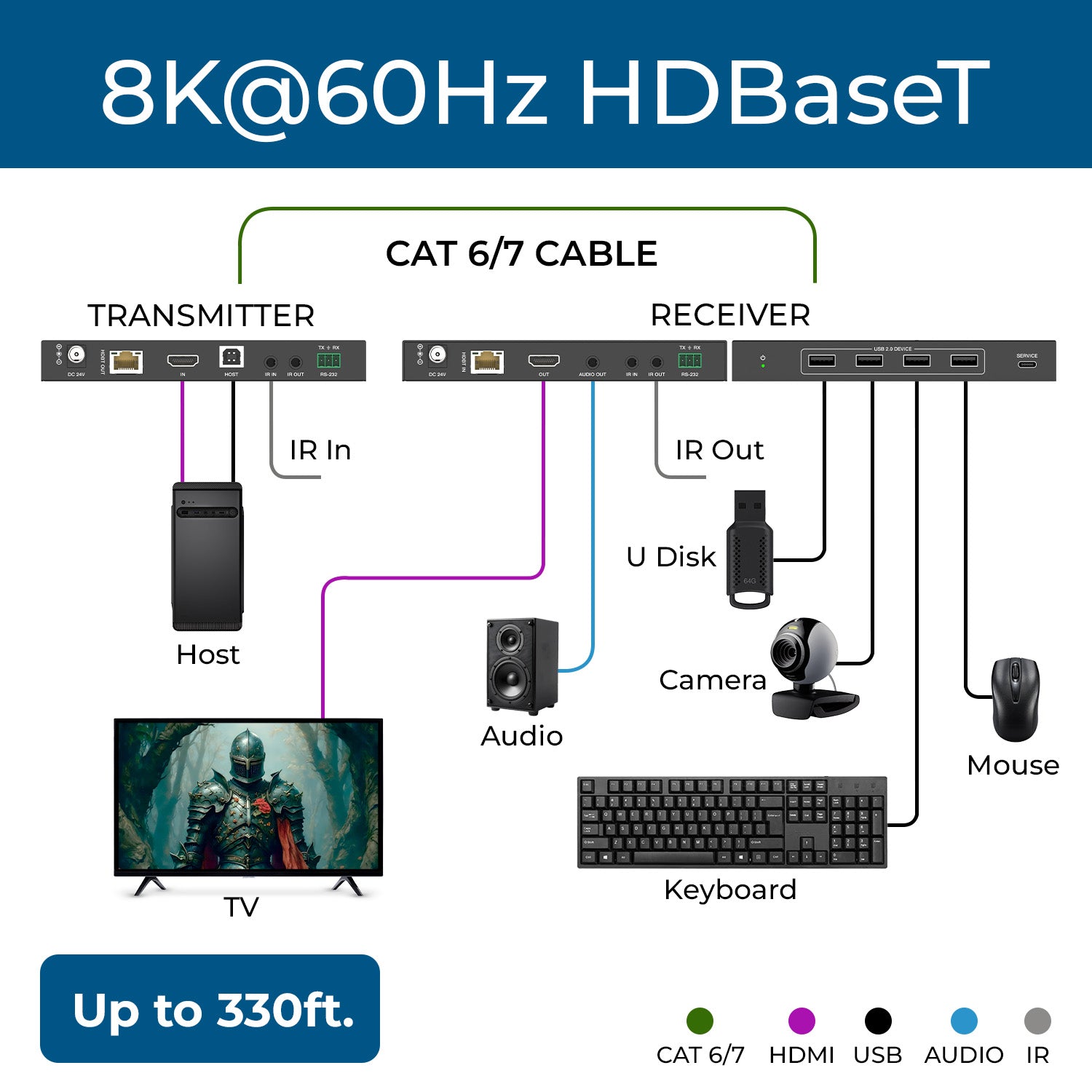

Utilizing advanced HDBaseT technology, the extender converts HDMI™ signals into standard HDBaseT signals and transmits them up to 100 meters (328 feet) over a single CAT5e/6/7 cable. It supports the latest HDMI™ 2.1 features, including VRR, ALLM, QMS, QFT, and SBTM, ensuring smooth visuals, reduced latency, and optimized performance for gaming and high-frame-rate content.

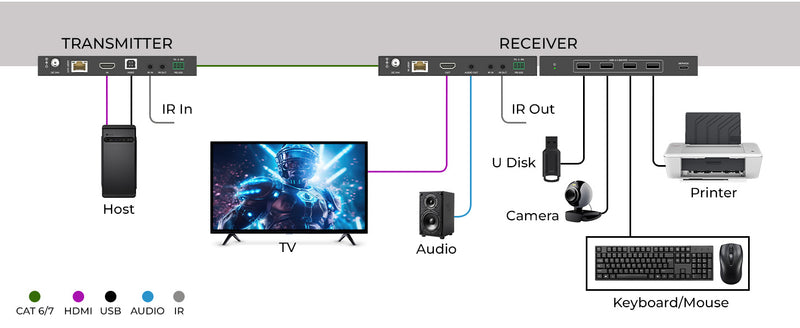

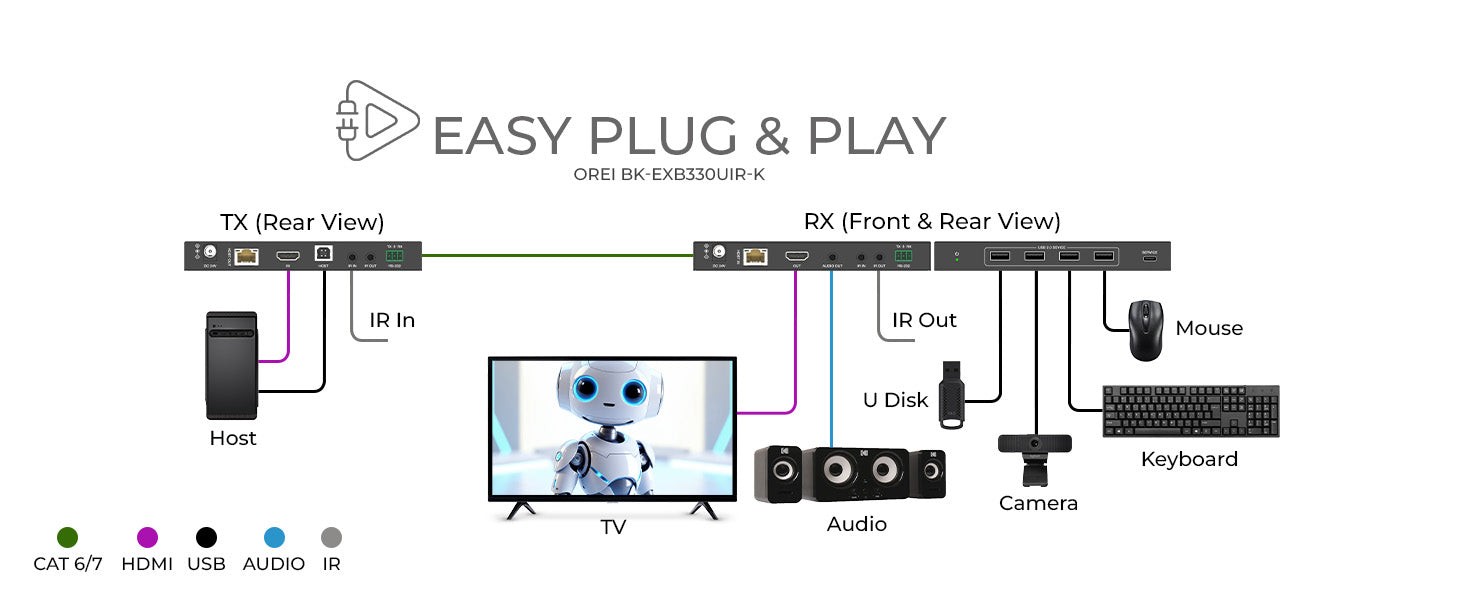

The system also supports HDR10, HDR10+, Dolby Vision, and HLG, along with a full range of advanced audio formats such as Dolby Atmos and DTS:X (through HDMI), delivering immersive audio-visual experiences. USB 2.0 KVM functionality allows remote control of a PC from the Receiver end using a keyboard, mouse and other peripherals such as webcam or touch panels. With audio de-embedding at the receiver, bi-directional IR, RS-232, CEC control, EDID management, and bi-directional PoC, this extender provides a powerful and flexible solution for video conferencing systems, multimedia broadcasting, control rooms, digital signage, and HDMI™ signal extension applications.
BK-EXB330UIR-K User Manual Download
