Uncompressed 4K HDMI Extension with Full AV Support
The UHD-EX230A-K delivers flawless 4K@60Hz video transmission up to 230 feet (70 meters) over a single Cat6/7 cable. With HDMI 2.0b and HDCP 2.2 compliance, it ensures smooth compatibility with the latest 4K sources and displays. Perfect for high-end AV setups in homes or commercial spaces.
Immersive Video and Audio Experience
Enjoy lifelike visuals with full support for HDR10+ and Dolby Vision formats. The 18Gbps video bandwidth guarantees high-quality, uncompressed signal delivery. Whether for digital signage or home theaters, this HDMI over Cat6 extender preserves every detail of your video and audio streams.
Flexible Audio Routing
The integrated optical audio extraction allows audio to be pulled from the HDMI signal and output via a dedicated optical port. Supports LPCM 8.1CH, Dolby TrueHD, and DTS-HD Master Audio for clean, high-fidelity sound with your external audio systems.
Local Monitoring, Remote Control, and Simplified Power

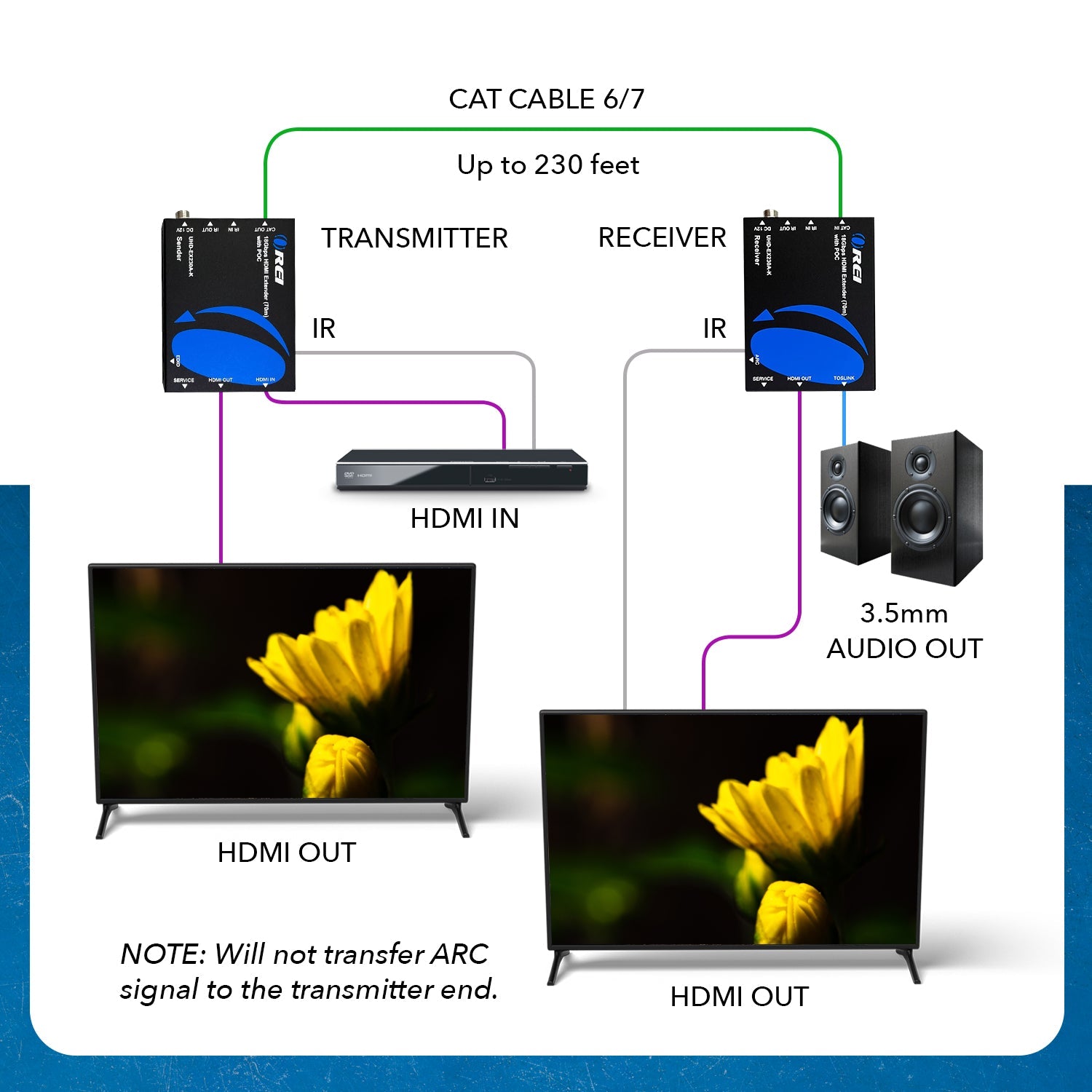

With HDMI loop-out on the transmitter, monitor your signal locally while sending it to a remote display. Bi-directional IR control allows operation of the source or display from either location. Power over Cable (PoC) simplifies installation by requiring only a single power adapter.

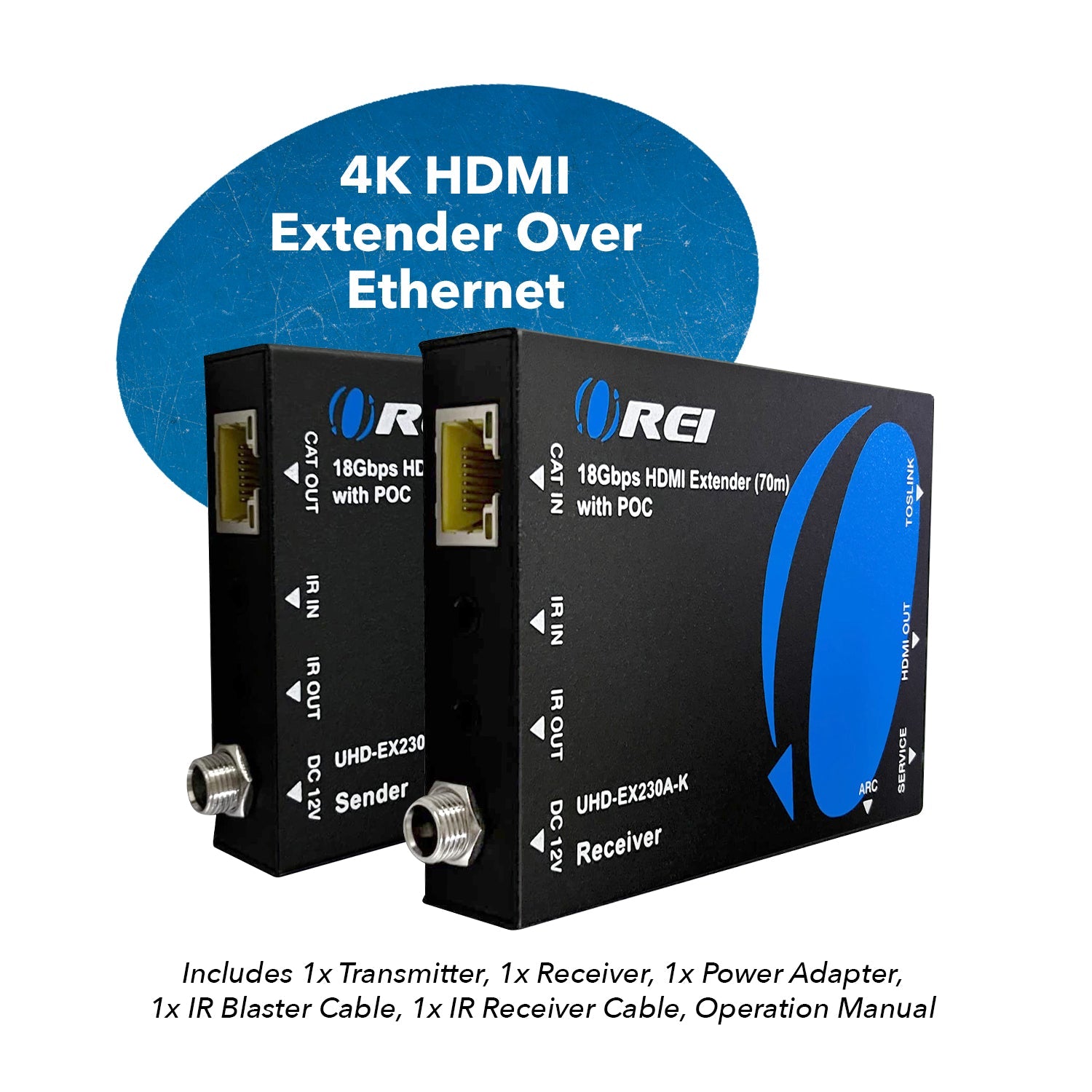

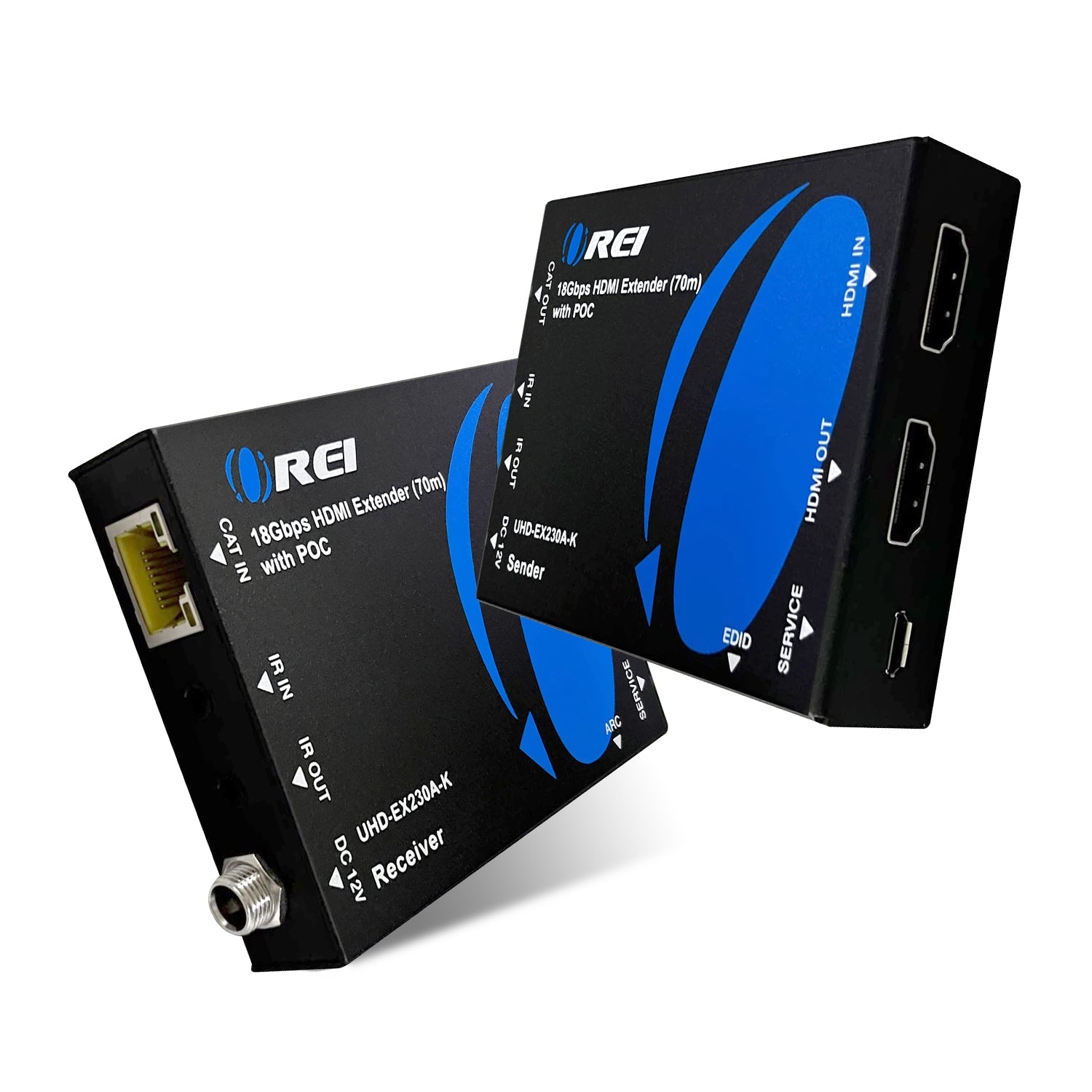

OREI UHD-EX230A-K: 4K HDMI Extender Over Ethernet CAT6/7 - With ARC Audio Extraction through Optical - Up to 230 feet
- HDMI 2.0b & HDCP 2.2 Compliant – Delivers compatibility with modern AV equipment and content protection standards.
- Supports Resolutions up to 4K@60Hz – Transmits 4K and 2K video up to 230 ft (70 m) over Cat6/7 cable.
- 18Gbps Video Bandwidth – Ensures high-performance, uncompressed audio and video signal transmission.
- HDR10+ & Dolby Vision Support – Maintains full compatibility with high dynamic range video formats.
- Audio Extraction via Optical Output – Extracts audio from either the HDMI source or ARC-enabled TV.
- Multi-Format Audio Pass-through – Supports LPCM 8.1CH, Dolby TrueHD, and DTS-HD Master Audio.
- HDMI Loop Output – Allows local display connection at the transmitter side.
- Bi-directional IR Control – Enables remote operation of source or display from either end.

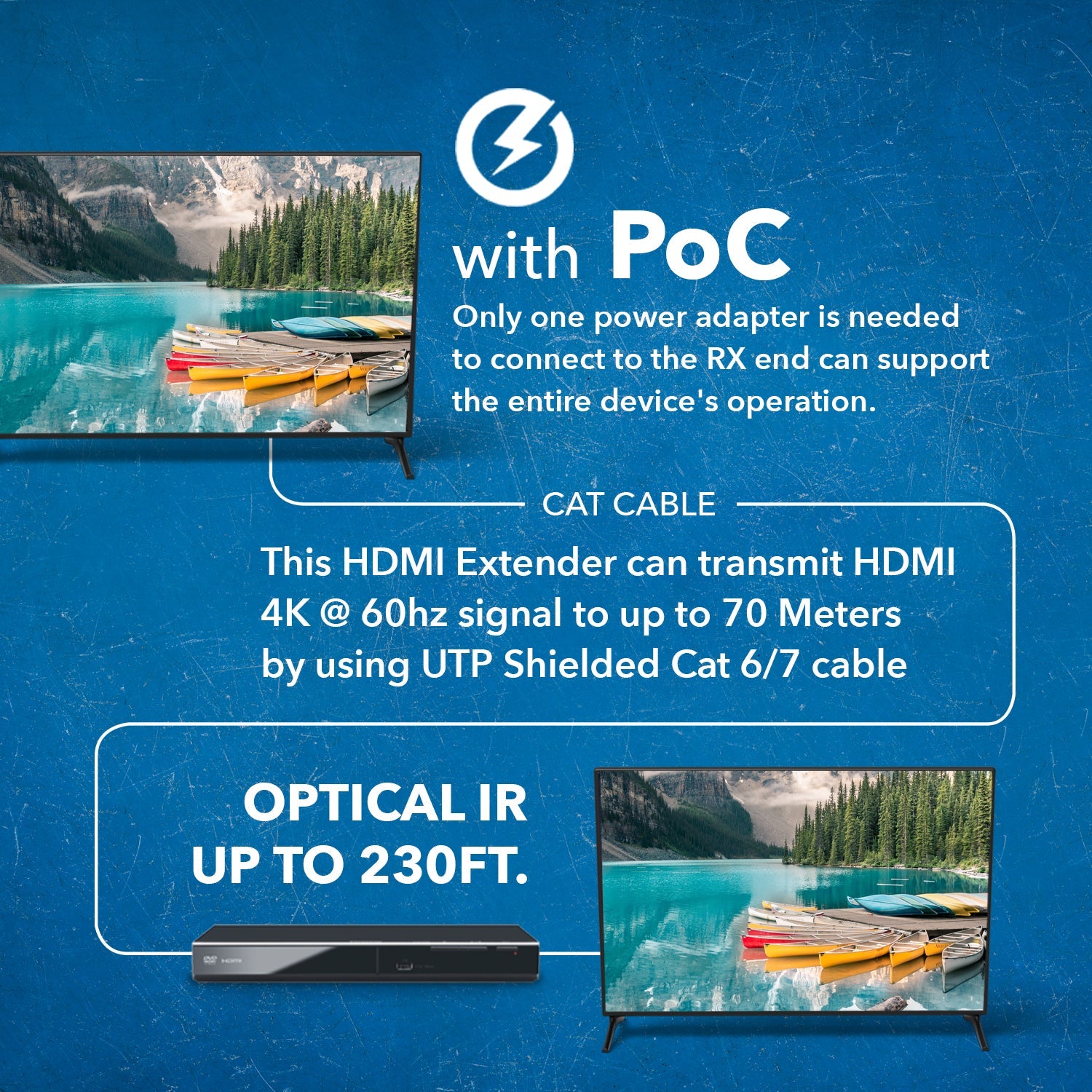

- Power over Cable (PoC) – Requires only one power adapter for the entire extender kit.
-

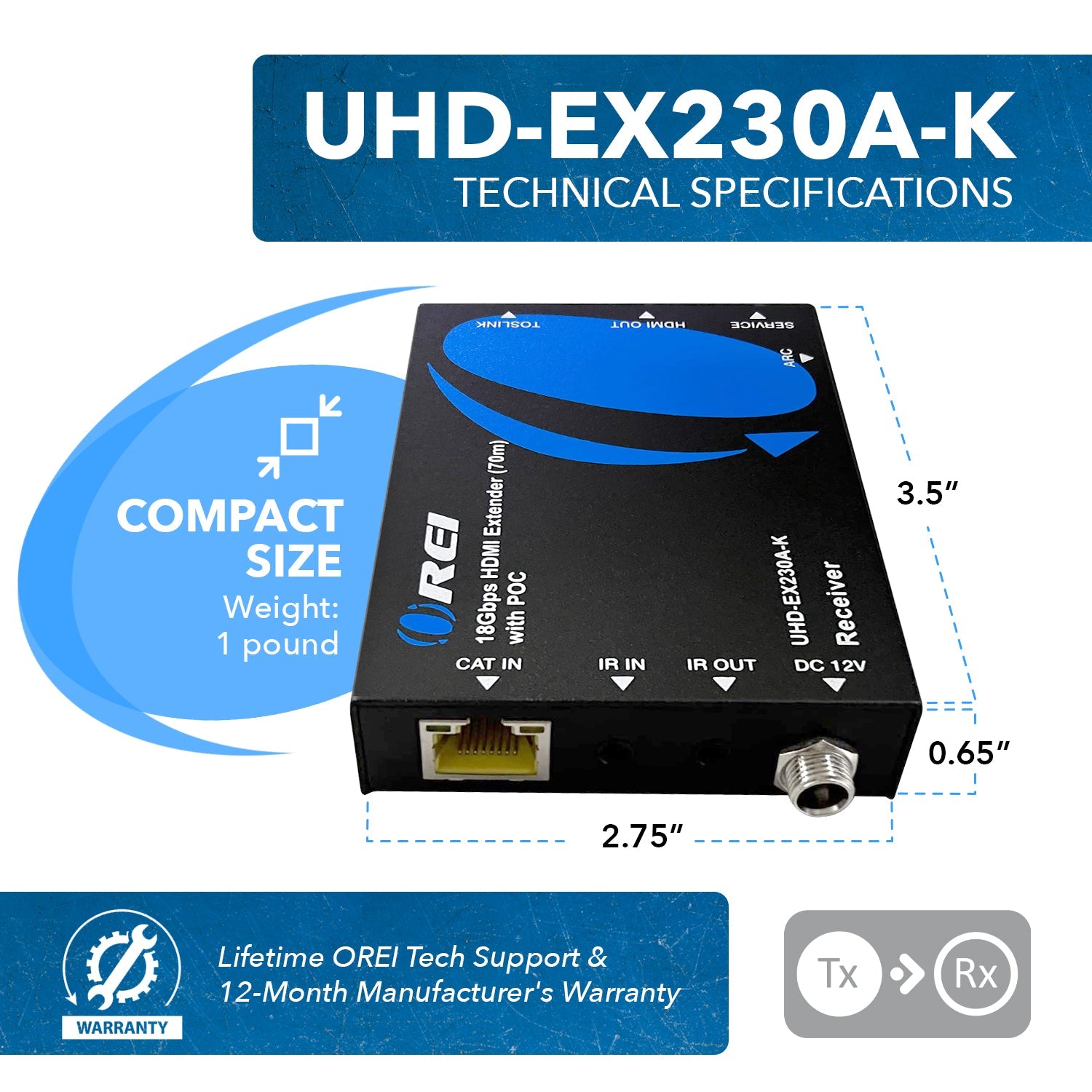

Compact & Durable Design – Simplifies installation in both commercial and residential environments.

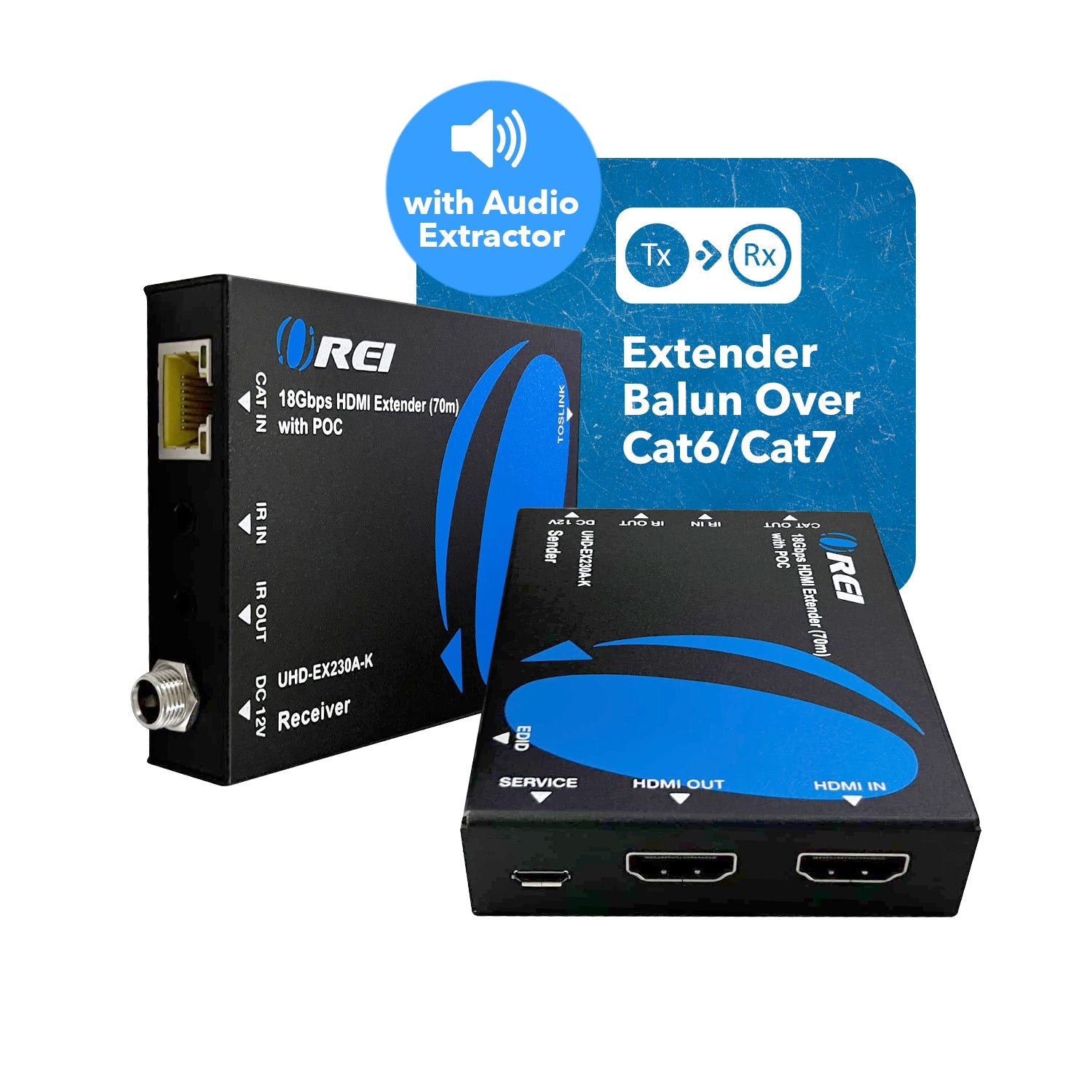

UHD-EX230A-K is a high-performance HDMI extender with integrated audio extraction, engineered to deliver uncompressed AV signal transmission over extended distances. It supports 4K@60Hz and 2K@60Hz video up to 230 feet (70 meters) via a single Cat6/7 cable and is fully compliant with HDMI 2.0b and HDCP 2.2 standards.
With a robust 18Gbps bandwidth, it ensures flawless video quality and supports premium formats including HDR10+ and Dolby Vision.
This extender features ARC (Audio Return Channel) capability and allows audio extraction either from the HDMI source or an ARC-enabled TV, with output through an optical port. It supports audio pass-through for formats such as LPCM 8.1CH, Dolby TrueHD, and DTS-HD Master Audio.
Additional highlights include HDMI loop output on the transmitter for local display connectivity, bi-directional IR for full remote control flexibility, and Power over Cable (PoC) technology—requiring only a single power adapter for the entire system. Its durable, compact design makes it a versatile choice for commercial AV setups and high-end residential installations.
UHD-EX230A-K User Manual Download
UHD-EX230A-K Specifications Sheet
