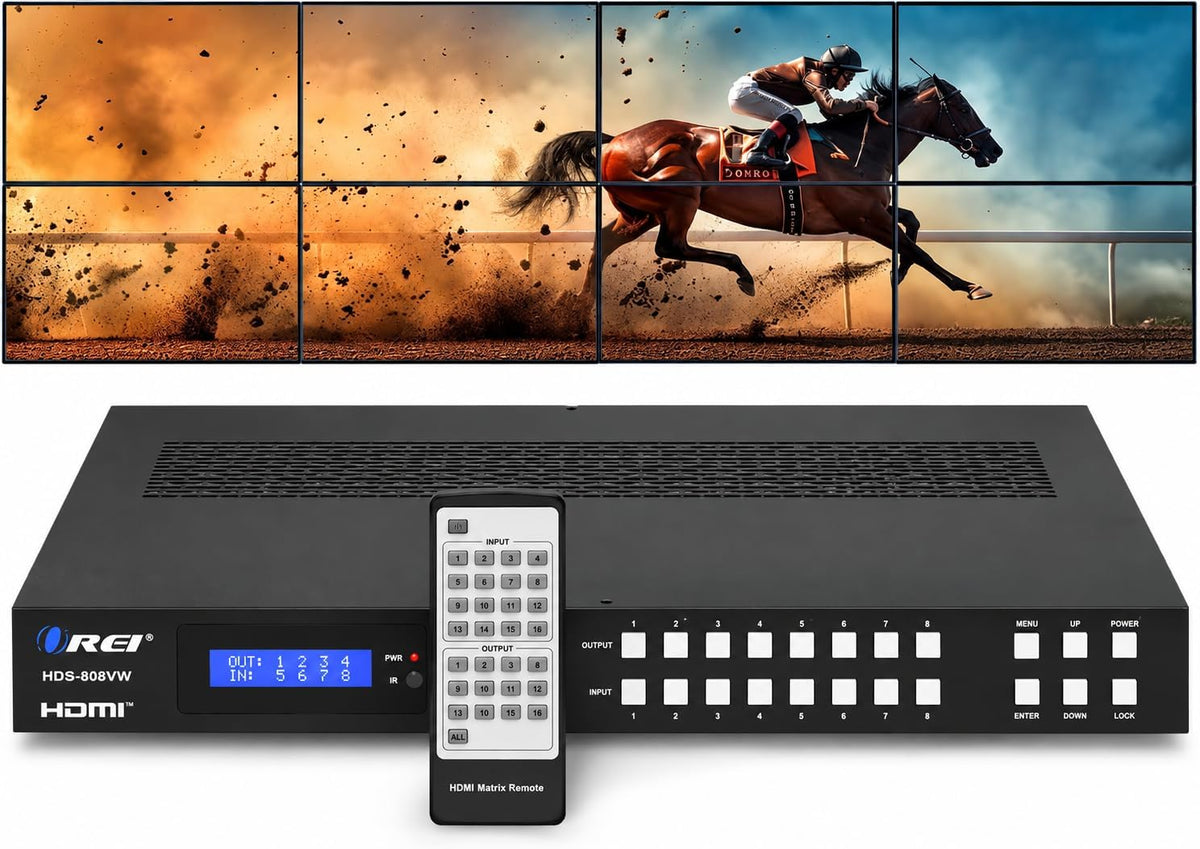

4K@30Hz 8x8 HDMI™ Matrix w/ Video Wall (Seamless) (HDS-808VW)

HDS-808VW: 4K@30HZ 8X8 HDMI™ MATRIX W/ VIDEO WALL (SEAMLESS)

Key Features:

• 8×8 HDMI™ Seamless Matrix Switcher – Routes up to eight HDMI™ sources to eight displays with seamless switching

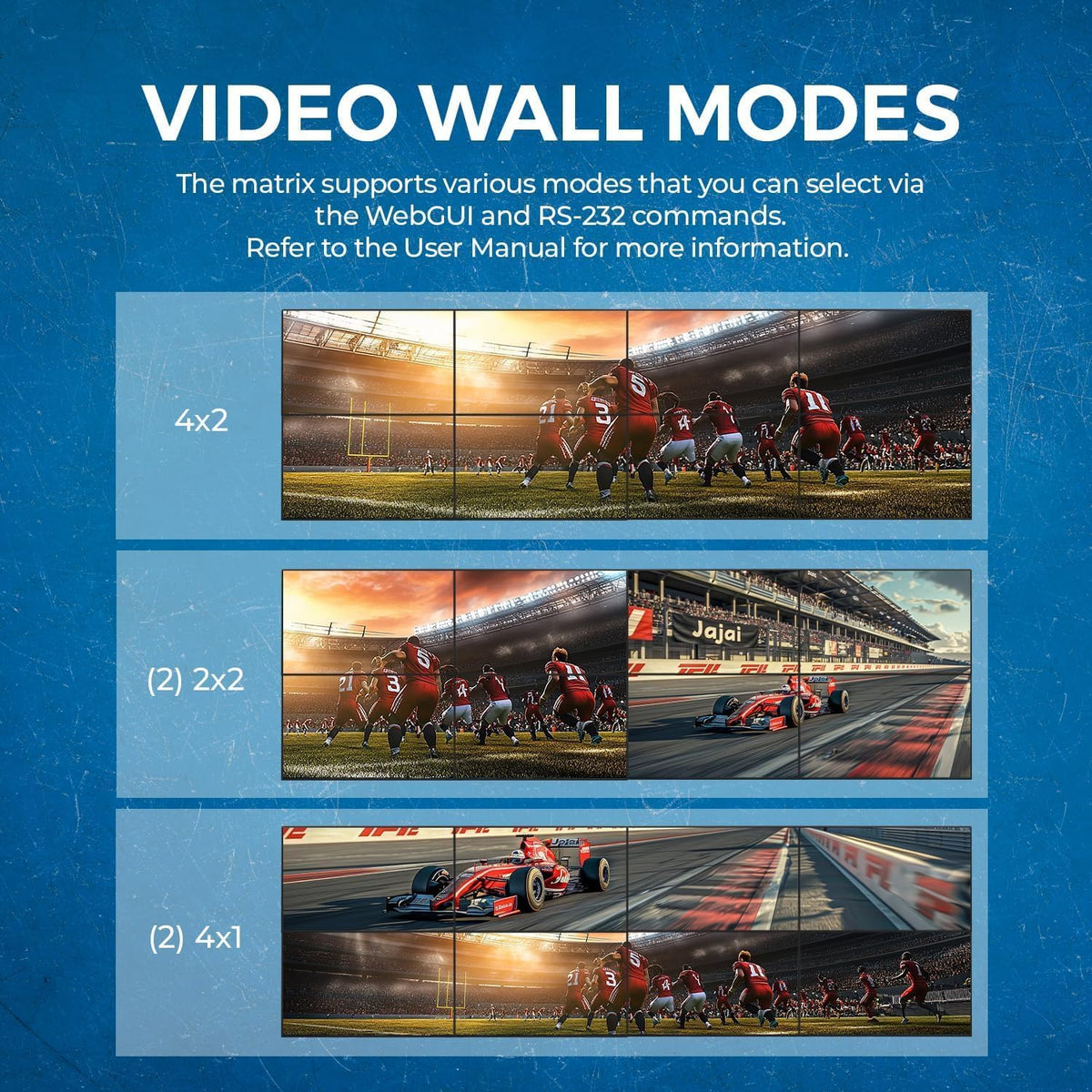

• Video Wall Processor Mode – Supports multiple video wall layouts including 4×2, 2×2, 1×8, and other configurations

• 4K Ultra HD Support – Supports input resolutions up to 4K@30Hz in compliance with HDMI™ 1.4b

• 10.2Gbps Video Bandwidth – Delivers high-quality video transmission with reliable performance

• Independent Output Scaling – Each output supports individual resolution adjustment up to 4096×2160@30Hz

• HDMI™ & DVI Output Modes – Outputs can be configured for either HDMI™ or DVI display compatibility

• Image Adjustment Controls – Independent brightness and contrast adjustment on all outputs

• Advanced EDID Management – Supports preset EDID, EDID copy, and custom EDID upload functions

• Scene Preset Management – Store, recall, delete, and automatically poll up to 16 preset configurations

• Seamless Switching Technology – Provides smooth source transitions without black screens or signal interruption

• Flexible Control Options – Control via front-panel buttons, IR remote, RS-232 commands, or Web GUI

• Professional AV Integration – Ideal for digital signage, command centers, video walls, control rooms, and commercial AV installations.

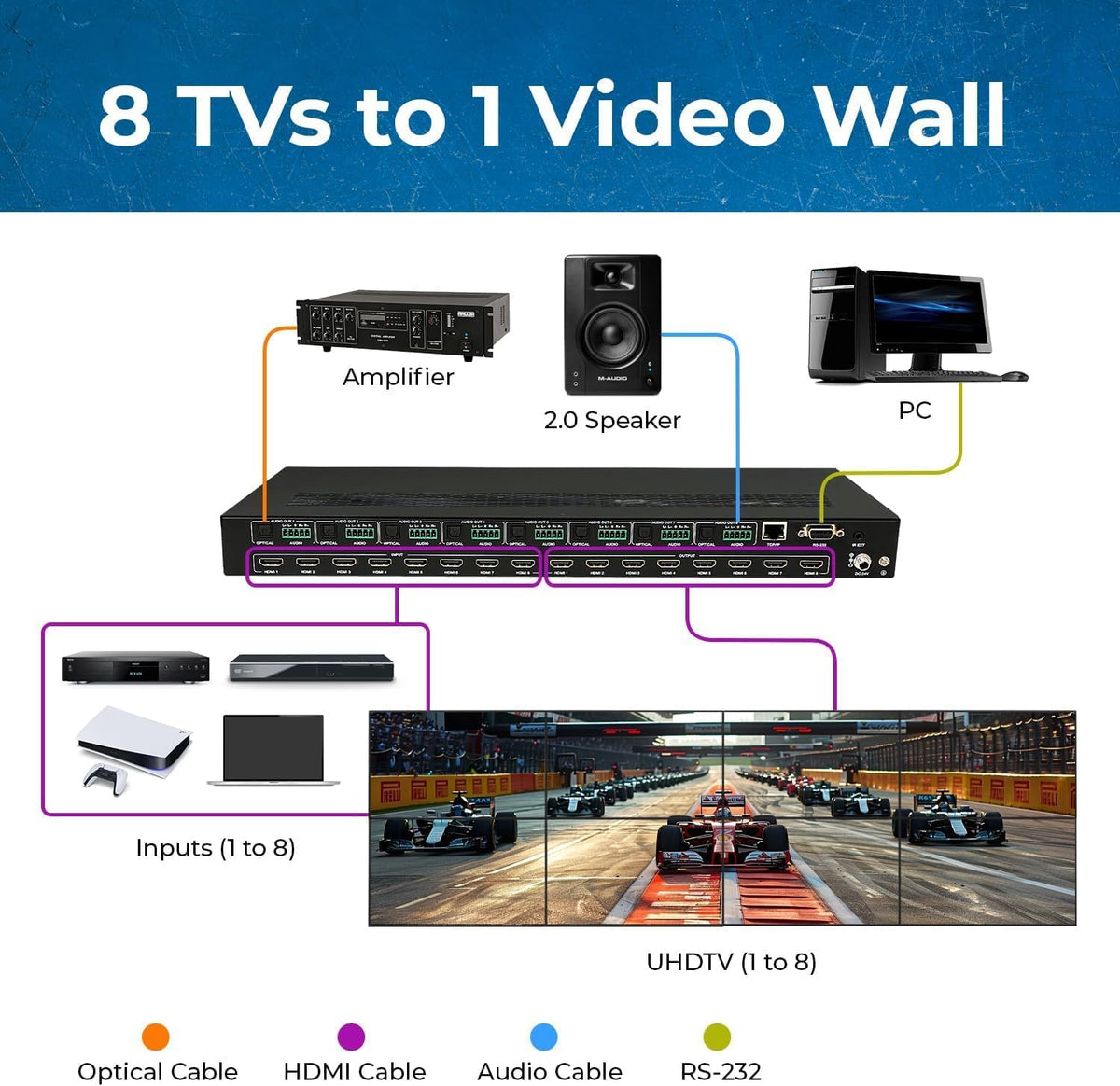

The HDS-808VW is a powerful AV distribution solution designed for professional environments requiring flexible signal routing, seamless switching, and advanced video wall capabilities. Supporting up to eight HDMI™ sources and eight displays, it delivers reliable high-quality video distribution with resolutions up to 4K@30Hz and a total video bandwidth of 10.2Gbps. Its seamless switching technology ensures smooth transitions between sources without screen blanking, making it ideal for control rooms, digital signage, command centers, corporate environments, and large-scale presentation systems.

Designed for maximum versatility, the processor operates in two modes: a traditional 8×8 seamless matrix switcher and a video wall controller supporting multiple display configurations, including 4×2, 2×2, 1×8, and other custom layouts. Each output features independent resolution scaling, HDMI™ or DVI output selection, and image adjustment controls such as brightness and contrast, ensuring optimal display performance across mixed screen environments.

The unit also includes advanced EDID management with preset, copy, and custom EDID options, allowing seamless compatibility between connected sources and displays. Up to 16 scene presets can be stored, recalled, deleted, or scheduled for automatic polling, enabling fast system configuration changes. Multiple control methods—including front-panel buttons, IR remote, RS-232, and Web GUI—provide convenient integration into professional AV control systems.
