Advanced HDMI Audio Extraction & Switching
The HDA-934 is a feature-rich HDMI audio extractor switch designed for home theaters and pro AV setups. It supports up to 3 HDMI sources, directing video to a display and audio to an ARC/eARC soundbar. With both ARC and eARC extraction, it simplifies audio routing from HDMI sources or an ARC-enabled TV—no additional receivers required.
Cinematic 4K HDR Video Performance
Experience stunning picture quality with support for 4K@60Hz resolutions, 18Gbps video bandwidth, and HDMI 2.0 / HDCP 2.2 compliance. Enjoy full HDR pass-through, including HDR10, HDR10+, Dolby Vision, and even 3D video formats, for immersive viewing across modern UHD displays.
Dolby Atmos & DTS:HD Audio Compatibility
The HDA-934 HDMI eARC extractor supports advanced multichannel formats like Dolby Atmos, DTS:HD, and standard PCM audio, making it ideal for cinema-grade audio experiences. Flexible EDID control lets users manually select 2.0CH, 5.1CH, 7.1CH, or AUTO, ensuring optimal sound output for any connected system.
Smart Switching & Compact Installation
Easily toggle between sources with auto-switching, front panel selection, or the included IR remote control. Whether for a media center, conference room, or home theater, its compact, plug-and-play design delivers powerful functionality in a small footprint.
OREI HDA-934: Dual HDMI eARC HDMI Audio Extractor
-
HDMI 2.0 and HDCP 2.2 Compliant – Ensures compatibility with modern AV sources and displays.
-
Supports up to 4K@60Hz – Delivers high-definition video with rich color detail.
-
18Gbps Video Bandwidth – Enables smooth transmission of high-resolution content.
-
Advanced HDR Pass-Through – Supports HDR10, HDR10+, Dolby Vision, and 3D formats.
-
ARC/eARC Audio Extraction – Sends audio from TV or HDMI sources to a connected ARC/eARC soundbar.
-

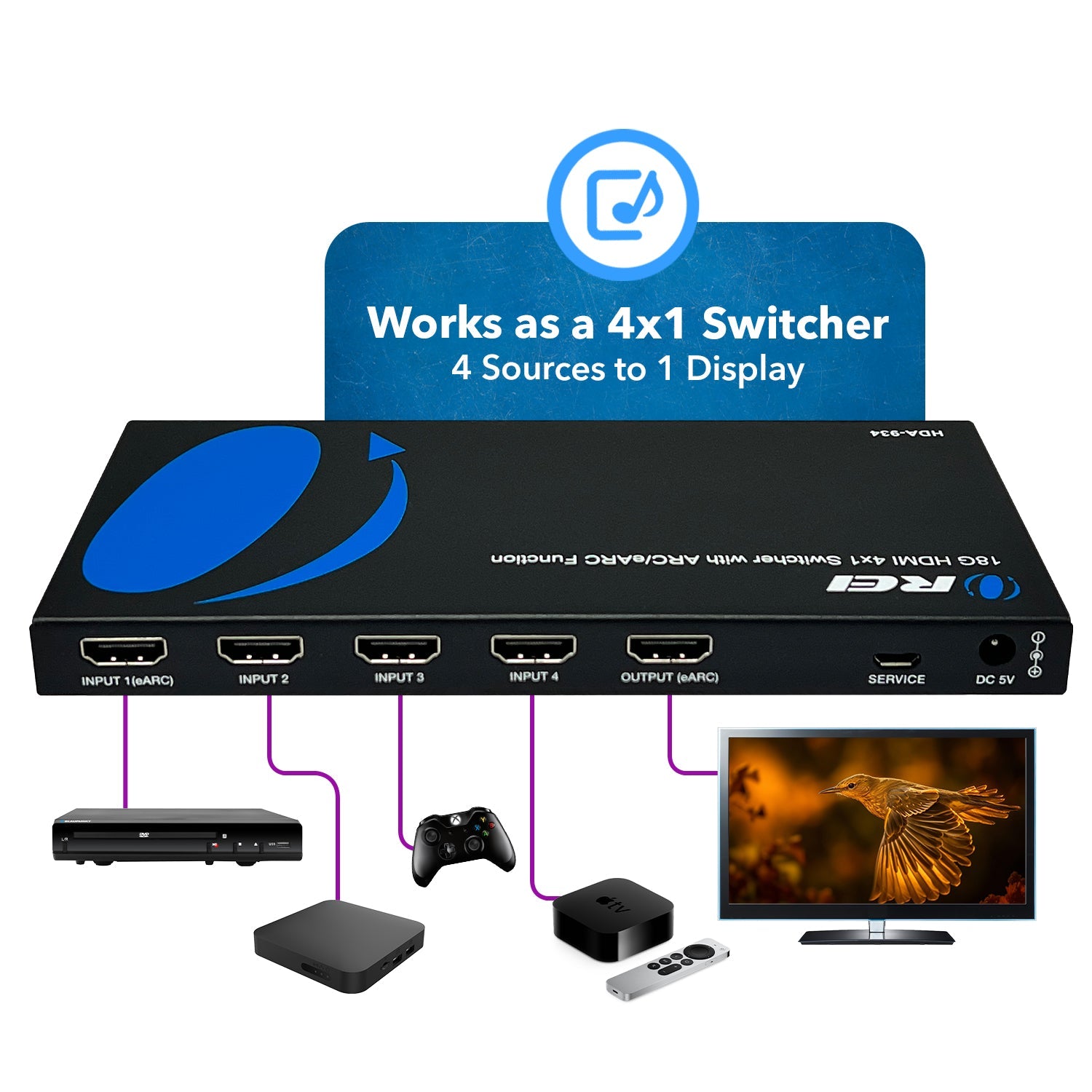

Multi-Source Switching – Connects up to 3 HDMI sources to one display and one soundbar.
-

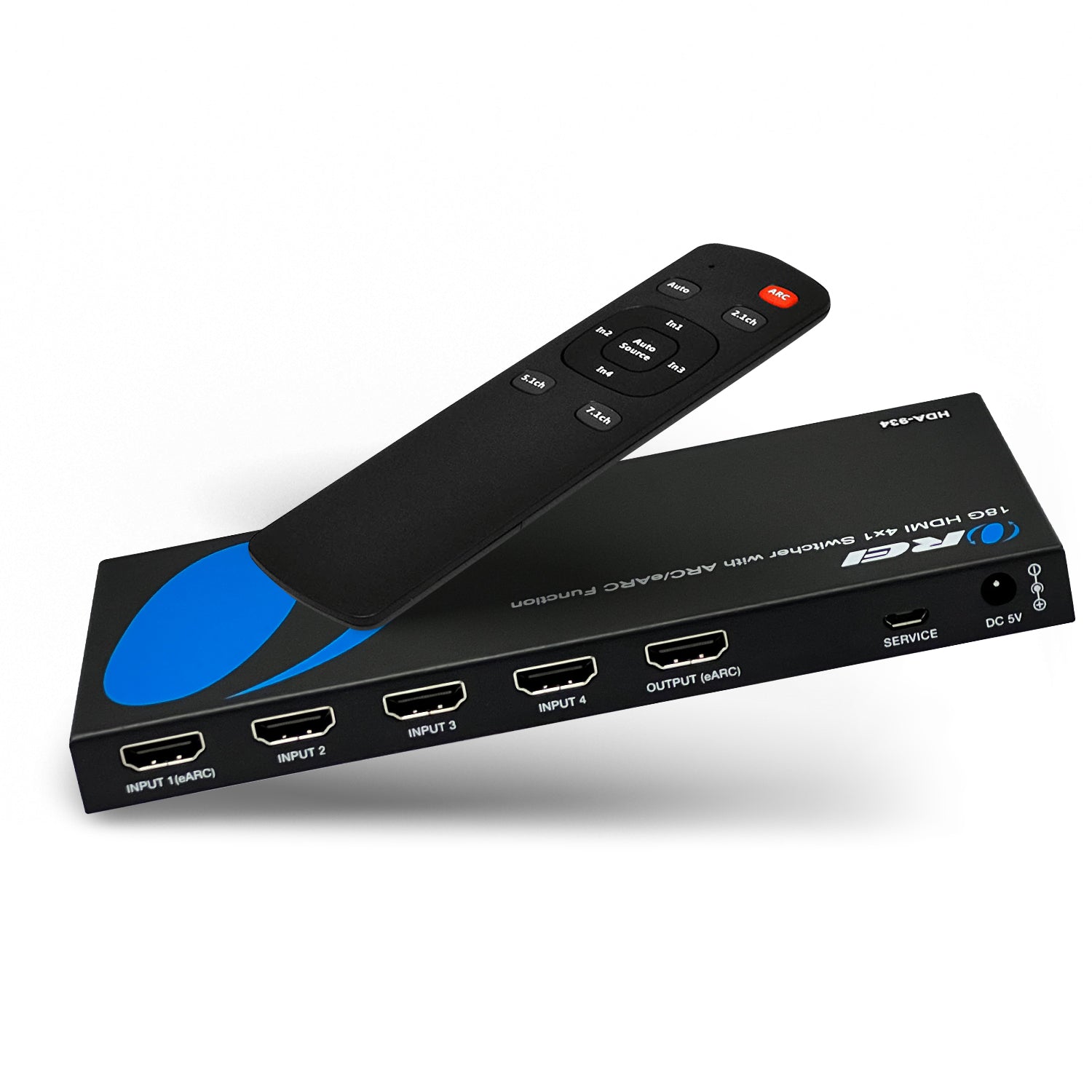

Auto/Manual Input Selection – Flexible switching via front panel or IR remote control.
-
Audio Format Support – Handles Dolby Atmos, DTS:HD, and standard multichannel audio formats.
-

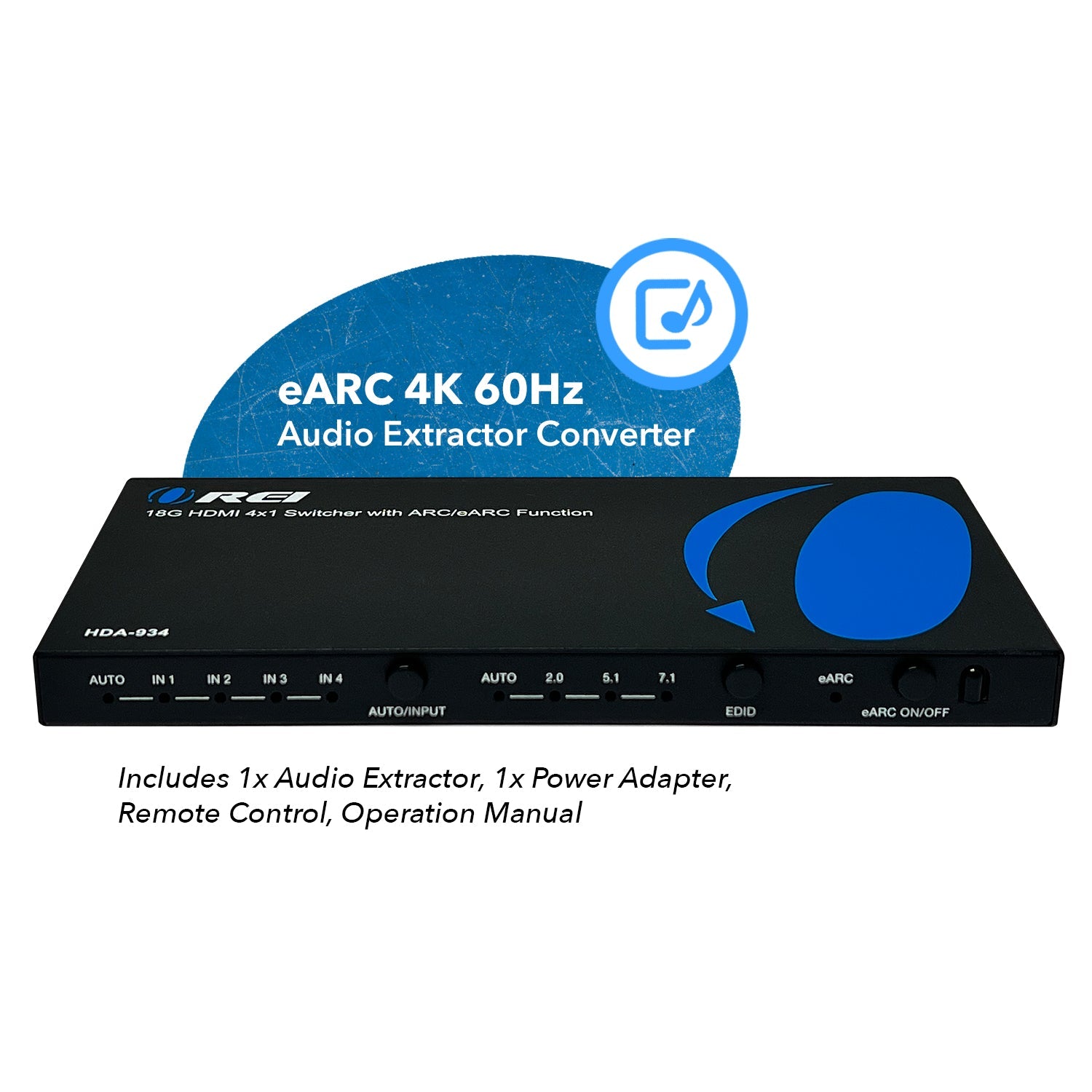

EDID Management – Allows manual selection of 2.0CH, 5.1CH, 7.1CH, or AUTO modes.
-
Compact Design – Ideal for home theaters, media centers, or conference rooms.

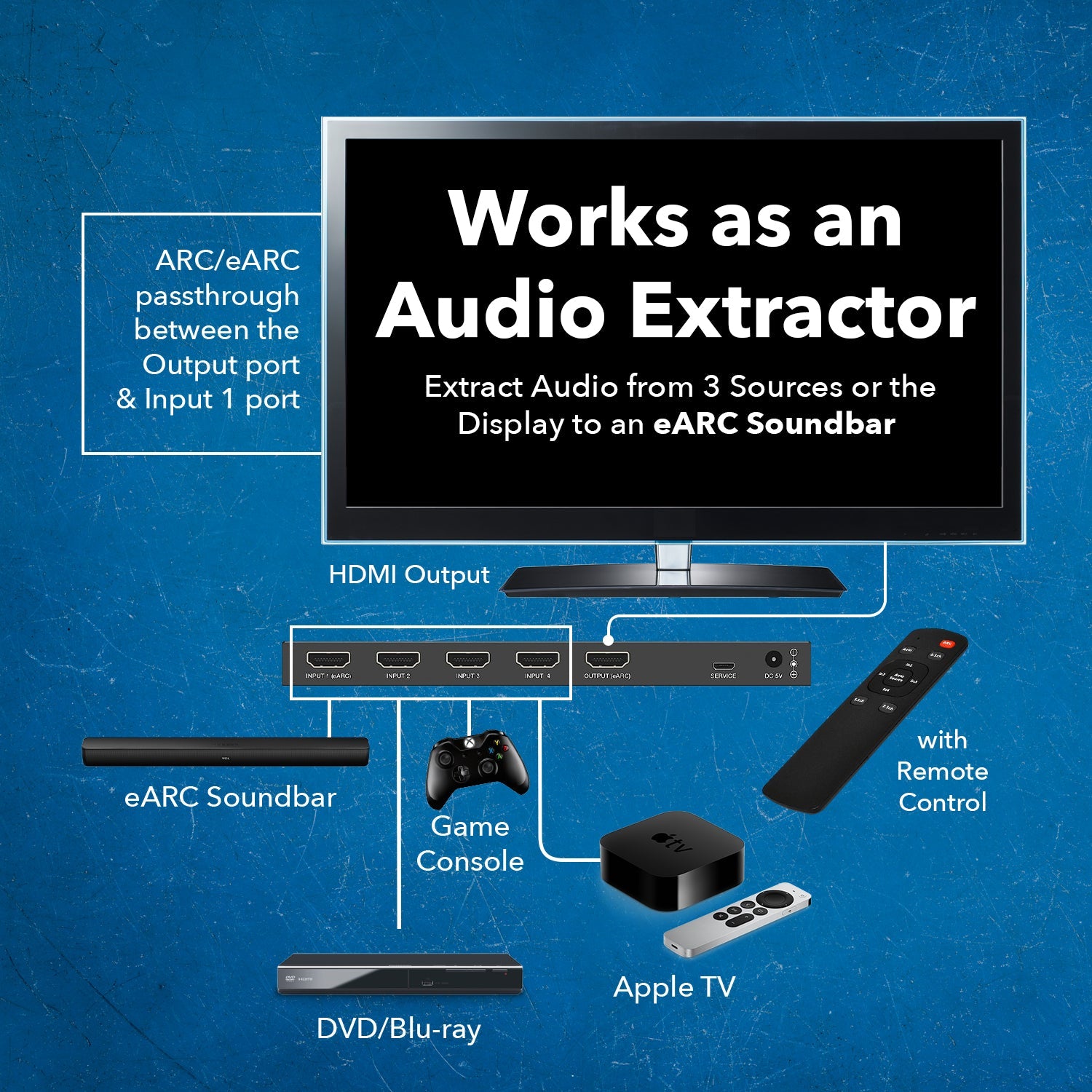

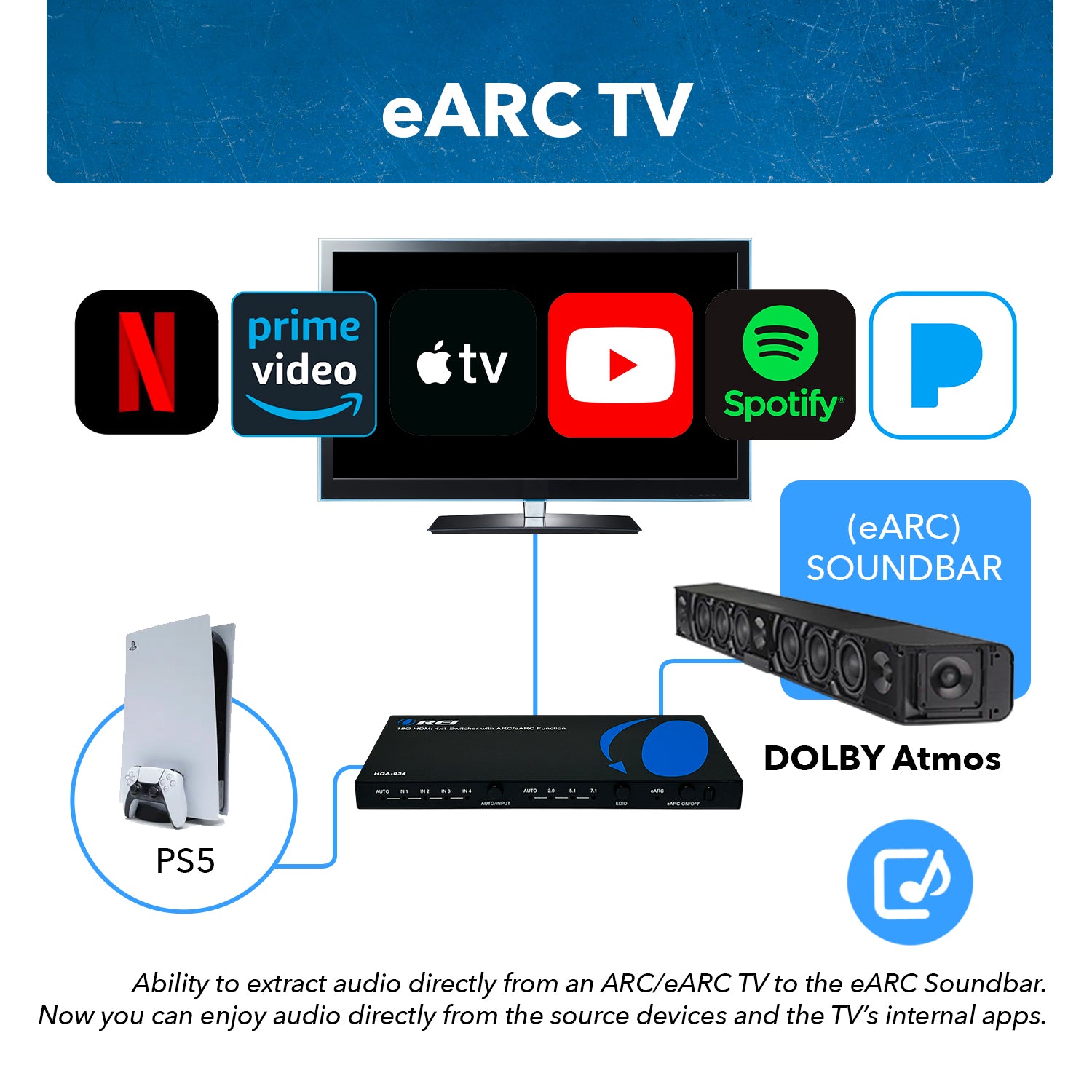

The HDA-934 is an advanced HDMI audio extractor and switch designed to simplify audio routing to ARC/eARC soundbars. It features 3 HDMI inputs, 1 HDMI ARC/eARC output to a display, and 1 HDMI ARC/eARC port for connecting a soundbar. The device allows you to extract audio from connected HDMI sources or directly from a compatible ARC/eARC TV.
Supporting HDMI 2.0 and HDCP 2.2, the HDA-934 delivers up to 4K@60Hz resolution with full support for HDR formats including HDR10, HDR10+, Dolby Vision, and 3D. With a high-speed video bandwidth of 18Gbps and audio support for Dolby Atmos and DTS:HD, it ensures high-performance AV distribution.
Input selection can be managed via auto-switching, front panel controls, or the included IR remote. Advanced EDID settings allow for customized audio channel output. Compact and reliable, it's ideal for both home and commercial installations.
HDA-934 User Manual Download
HDA-934 Specifications Sheet
Purchased it to bridge my Amazon Fire Stick, Sony System 6 and my old ARC only TV to get advanced quality sound output. It does the job absolutely fine as advertised to extract uncompressed audio from the input souce to the soundbar. I considered HDA-934 over HDA-929 as I may add more input devices to my setup in futire. At this point I am thankful to the support from FAYZ Team to clearly demonstrate the purposes of the devices. Always keep up the good works folks.
One minor issue I am facing is that every time I switch on my setup I have to turn on and off the eARC swich on the extractor to get the sound output on the soundbar. Other than that no issue at all. Hope support team will address this issue well.
